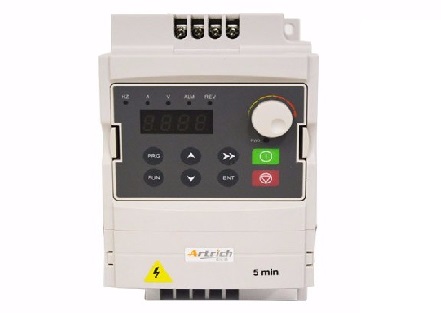

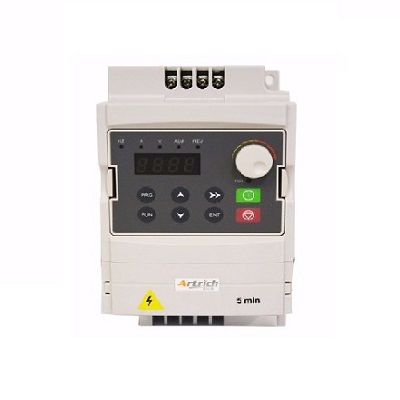

Vibration of WEINVIEW inverter AR80iL-O: less than 0.5g, output voltage range: 0 -- 220V, output frequency accuracy: 0.IHZ, maximum overload current: 110% long-term 150%1 minute 180%5 seconds.
Application situation
Textile machinery, printing and dyeing machinery, packaging machinery, food processing, paper printing, tobacco machinery, etc
parameter
input
Input voltage range: three-phase 190V -- 250V
output
Output voltage range: 0 -- 220V
** Large overload current: 110% long-term 150%1 minute 180%5 seconds
Control and operation
Frequency range: 0-600 Hz
Output frequency accuracy: 0.IHZ
Speed range: 1:100
Control mode: V/F control, simple vector control
Torque lifting: manual setting, automatic lifting
Starting torque: 100% rated torque at 5.0Hz (VF control), 150% rated torque at 1.5Hz (simple vector control)
Voltage/frequency characteristics: V/F linear curve, square curve, multipoint V/F curve
Acceleration and deceleration curve: linear acceleration and deceleration curve
Frequency setting input: local keyboard, potentiometer, communication, multi-speed, analog, PID control, pulse, other
Input terminal instruction signal: start, point, multi - speed, fault reset, analog switching, others
Input terminal: 5 digital input terminals, you can define the function; Two analog input terminals, ACI receives 0/4-20mA, current analog, AVI receives 0-10V voltage analog
Output terminal :1 multifunctional collector output terminal :1 set of multifunctional relay output terminal, 1 analog output terminal (custom output voltage or current)
Control and operation
Standard functions: automatic current limiting and voltage limiting, manual torque lifting, automatic torque lifting, energy consumption setting, DC braking, automatic fault reset, 7-stage multi-speed operation, frequency jumping function, closed-loop PID regulation control, frequency upper and lower limits, carrier frequency regulation function, automatic voltage regulating operation, low noise operation, RS485 communication, slip frequency compensation
Protection function: overvoltage, undervoltage, external failure, overcurrent, current limiting, overheating, overload, etc
Communication interface: RS-485 communication interface
Brake unit: all system standard
display
LED display: output frequency, output voltage, output current, output speed, set frequency, module temperature, analog feedback, analog output and other optional
Conditions of use
Communication mode: RS-485 communication interface standard MODBUS communication
Installation place: Install in an environment free from direct sunlight, dust, corrosive gas, flammable gas, steam, and dripping water
Applicable environment: -10°C -- +40°C, 40° -- 50%C derating request, each increase of 1C, 4% derating
Vibration: less than 0.5g
Storage environment: s95%RH, no condensation, -20°C -- +40C
Installation: wall-mounted, guideway (below 4KW)
Protection level: IP20
Cooling method: forced air cooling
