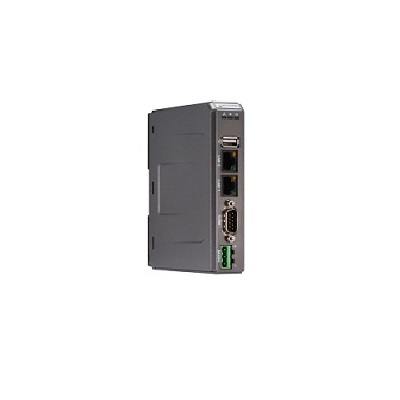

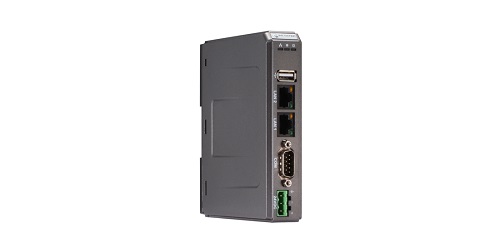

WEINVIEW interface CMT-FHDX-9.2 million calendar: Built-in, insulation resistance: over 50 Meω at 500VDC, support for Gigabit Ethernet ports, high resolution video playback, support for 1080p H.264.
characteristic
Full HD 1080p HDMITM high resolution output
Four-core Cortex-A17 CPU High efficiency 3D processor
Can perform video playback in high resolution, support 1080p H.264
Supports custom 16:9/4:3 LCD monitors
Thin lightweight design and can be fixed using aluminum rails
No fan cooling system
Built-in 4 GB flash memory and perpetual calendar
USB Host support
Support Gigabit Ethernet ports
Support MPI 187.5K
Built-in power isolation
parameter
memory
Flash memory: 4GB
Memory (RAM) : 1GB
Processor: Four-core RISC CPU
I/O interface
SD card slot: None
USB Host: USB 2.0x 1
USB Client: None
Ethernet: LAN1:10/100/1000Base-Tx1, LAN 2:10/100 Base-Tx1
Serial interface: COM1:RS-232 2W, COM2:RS-485 2W/4W, COM3:RS-485 2W
RS-485 Dual isolation protection: None
CAN Bus: None
HDMI output: Customizable resolution (** high resolution 1920×1080)
Recommended resolution (recommended to use the right column resolution screen, otherwise incompatible problems may occur) : 720x480; 720x576; 800x600; 1024x768; 1280x720; 1366x768; 1920x1080
Sound output: HDMI sound output
Perpetual calendar: Built-in
Power supply
Input power: 24±20%VDC
Power isolation: Built-in
Power consumption: 850mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩ at 500VDC
specification
PCB coating: Yes
Shell material: engineering plastic
Dimensions NxHxD: 29.8 x 130 x 115mm
Weight: about 0.24kg
Installation: 35 mm DIN rail fixed with aluminum rail
Protection level: IP20
Operating environment
Storage environment temperature: -20° -- 60C(-4° -- 140°F)
Operating environment temperature: 0° -- 50C(32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Anti-vibration: 10to25Hz(instrument, Y,Z axis 2G30 minutes)
certification
CE: CE marked
UL: cULus Listed
software
EasyBuilder Pro: Limited to simplified Chinese version of EasyBuilder Pro V6.07.01 or later
Weincloud: EasyAccess2.0(Optional), Dashboard(Optional)
CODESYS® : Optional
