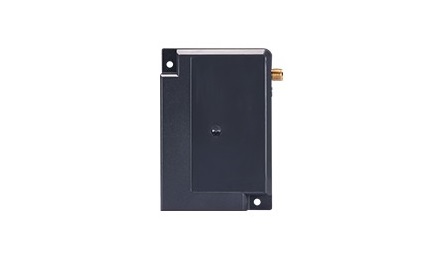

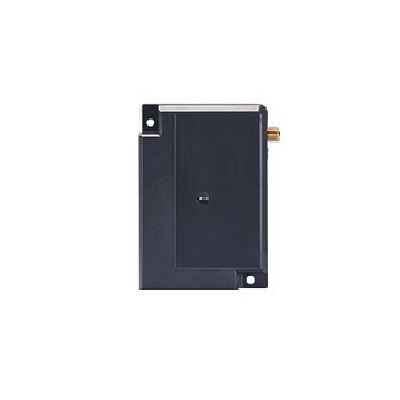

WEINVIEW M02 (WiFi module) shell material: engineering plastic, input power: 5VDC, thin design, fit installation, do not need to change the design of the control cabinet, magnetic suction external antenna, can be installed in any position, optimize the sending and receiving signal.
characteristic
Modular design, flexible extension of man - machine wireless networking function
Supports the standard WiFi band IEEE 802.11b/g/n
Thin design, fit installation, no need to change the design of the control cabinet
Magnetic suction external antenna, can be installed in any position, optimize the sending and receiving of signals
parameter
Network frequency band
WiFi: 1EEE802.11b/g/n; 802.11b:max19.76dBm; 802.11g:max19.93dBm; 802.11 n: max19.99 dBm
I/O interface
SMA female connector: 1
Connect the male head to the HMI :1
Power supply
Input power: 5VDC
Power consumption: 900mA@5VDC(HMI power supply)
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩ at 500VDC
specification
PCB coating: None
Shell material: engineering plastic
Dimensions: WxHxD 54.5x 80 x 24.1mm
Weight: about 80g
Installation: lay joint connection, diagonal screw lock attached installation
Operating environment
Protection level: M02:IP20 Compliant; Magnetic magnet external antenna: IP66 Compliant
Storage environment temperature: -20° -- 60° C (-4° -- 140°F)
Operating environment temperature: 0°C -- 50°C(32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Vibration resistance: 10to25Hz(X,Y,Z axial 2G30 minutes)
certification
CE: CE marked
Software: EasyBuilder Pro
