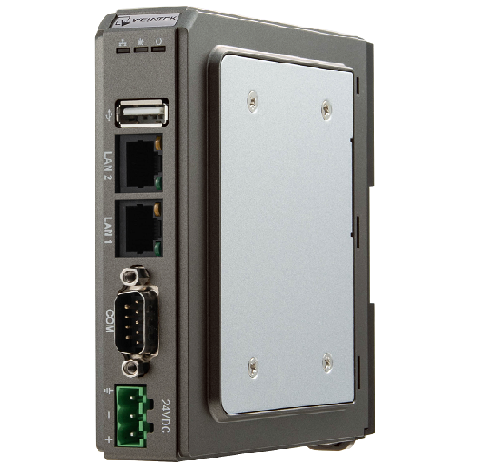

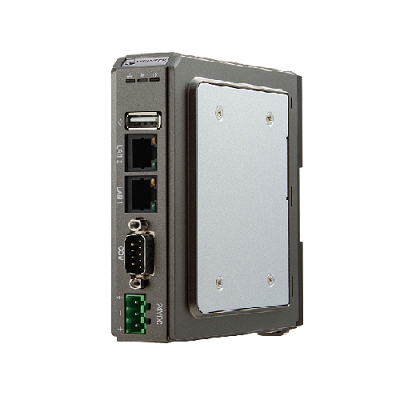

WEINVIEW interface cMT-SVRX-920 Memory (RAM) : 1GB, input power: 24±20%VDC, support Gigabit Ethernet port, support MPI 187.5K, built-in power isolation.
characteristic
Thin lightweight design and can be fixed using aluminum rails
No fan cooling system
Built-in 4 GB flash memory and perpetual calendar
USB Host port is supported
Support Gigabit Ethernet ports
Supports MPI 187.5K
Built-in power isolation
OPC UA server is supported
parameter
memory
Flash memory: 4 GB
Memory (RAM) : 1GB
Processor: Four-core RISC CPU
I/O interface
SD card slot: Micro SD x1
USB Host: USB 2.0 x 1
USB Client: None
Ethernet interface: LAN1:10/100/1000Base-TX1; LAN 2:10/100 Base-T x 1
Serial interface: COM1:RS-232 2W; COM2:RS-485 2W/4W; COM3:RS-485 2W
RS-485 Dual isolation protection: None
CAN Bus: None
HDMI output: None
Voice output: None
Perpetual calendar: Built-in
Power supply
Input power: 24±20%VDC
Power isolation: Built-in
Power consumption: 850mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩ at 500VDC
specification
PCB coating: Yes
Shell material: engineering plastic
Dimensions NxHxD: 29.8x130x115mm
Weight: about 0.24kg
Installation: 35 mm DIN rail fixed with aluminum rail
Operating environment
Protection level: IP20
Storage environment temperature: -20° -- 60° C (-4° -- 140 ° F)
Operating environment temperature: 0° -- 50C(32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Vibration resistance: 10to25Hz(X,Y,Z axis 2G 30 minutes)
certification
CE: complies with the CE certification standard
UL: cULus Listed
software
EasyBuilder Pro: Limited to simplified Chinese version of EasyBuilder Pro V6.07.01 or later
Weincloud: EasyAccess2.0(Optional), Dashboard(Optional)
CODESYS® : Optional
