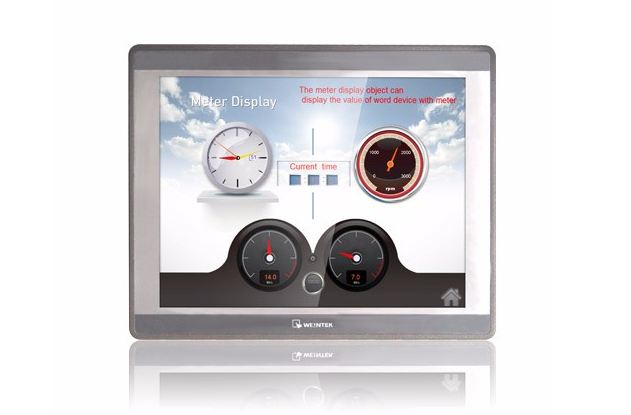

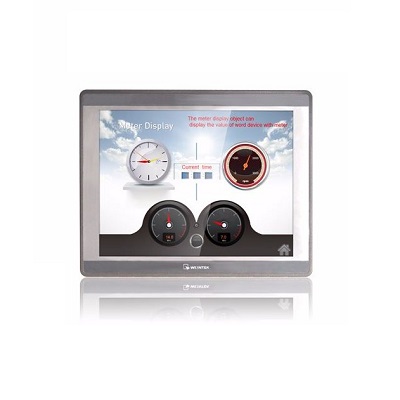

WEINVIEW human machine interface eMT3150A aluminum alloy case with new colors and fashion design; Video input supports NTSC and PAL formats. 15' 1024x768 TFT industrial grade LCD; Faness cooling system; Built-in 256MB storage memory and calendar; NEMA4/IP66 panel protection level; Ceramic package high life LED backlight; SD card slot SD/SDHC cards are supported. Built-in power isolation guard; Com1 or Com3 RS485 2W supports MPI 187.5K. CAN Bus device supports CANopen communication protocol; Com1 / Com3 RS485 and CAN Bus isolator built in.
Product parameter
Monitor: 15 "TFT
Resolution: 1024 x 768
Brightness (cd/m²) : 400
Flash memory: 256MB
Memory: 256MB
Input power: 24±20%VDC
Power consumption: 900mA@24VDC
Resistance voltage: 500VAC (1min)
Overall dimension (W×H×D) : 366 × 293 × 57mm
Hole size: 352 × 279mm
Weight: About 2.75 kg
Installation mode: Panel installation, VESA wall hanger 75*75mm
Operating environment temperature: 0° -- 50 ° C (32° -- 122°F)
Relative ambient humidity: 10% -- 90% (no condensation)
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
