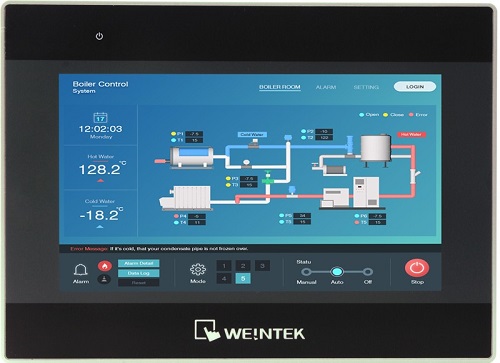

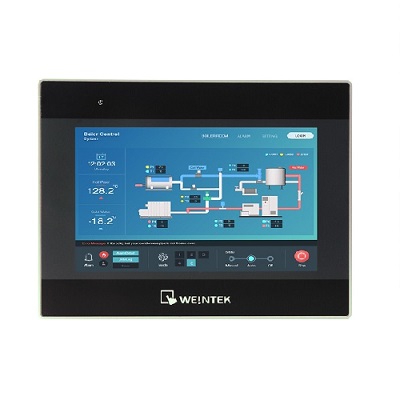

WEINVIEW man-machine interface cMT3075XH2 Weight: about 0.6kg, opening size: 192x138mm, built-in 4 GB flash memory and calendar, NEMA4 / IP66 front panel protection grade.
characteristic
7' 1024 x 600 wide viewing Angle LCD, LED backlight
Four-core Cortex-A35 CPU paired with a high-performance 3D processor
No fan cooling system
Built-in 4 GB flash memory and perpetual calendar
COM2 and COM3 RS-485 2W support MPI 187.5K at the same time
Built-in power isolation
NEMA4 / IP66 Front Panel protection level
parameter
display
Monitor: 7 "wide viewing Angle
Resolution: 1024 x 600
Brightness (cd/m2) : 450
Contrast ratio :800:1
Backlight type: ED
Backlight life :>30,000 hours
Color :16.7M
LCD viewing Angle (T/B/LIR):85/85/85/85
Point distance (mm):0.1506(H)×0.1432(V)
Touch panel
Type: four wire resistance type
Touch accuracy: length of action area (X)±2%, width (Y)±2%
memory
Flash memory :4GB
Memory (RAM):1GB
Processor: Four-core RISC CPU
I/O interface
SD card slot: None
USB Host: USB2.0 x 1
USB Client: None
Ethernet interfaces: LAN 1:10/100 Base-Tx 1, LAN 2:10/100 Base-Tx 1
Serial interface: Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W, Con.B:COM1 RS-232 4W,COM3 RS-232 2W*
RS-485 Dual isolation protection: None
CAN Bus: None
HDMI: None
Voice output: None
Perpetual calendar: Built-in
Power supply
Input power: 24±20%VDC
Power isolation: Built-in
Power consumption: 820mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩ at 500VDC
specification
PCB coating: Yes
Shell material: engineering plastic
Outline size: 200.3x146.3x35.0mm
Hole size: 192x138mm
Weight: about 0.6kg
Installation mode: Panel installation
Operating environment
Protection level: NEMA4 /IP66 Compliant Front Panel
Storage environment temperature: -20° -- 60° C (-4° -- 140F)
Operating environment temperature: 0° -- 55°C(32° -- 131F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Vibration resistance: 10to25Hz(X,Y,Z axial 2G30 minutes)
certification
CE: CE marked
software
EasyBuilder Pro: Limited to simplified Chinese version of EasyBuilder Pro V6.06.01 or later
Weincloud: EasyAccess2.0(Optional), Dashboard*(Optional)
CODESYS® : Optional
