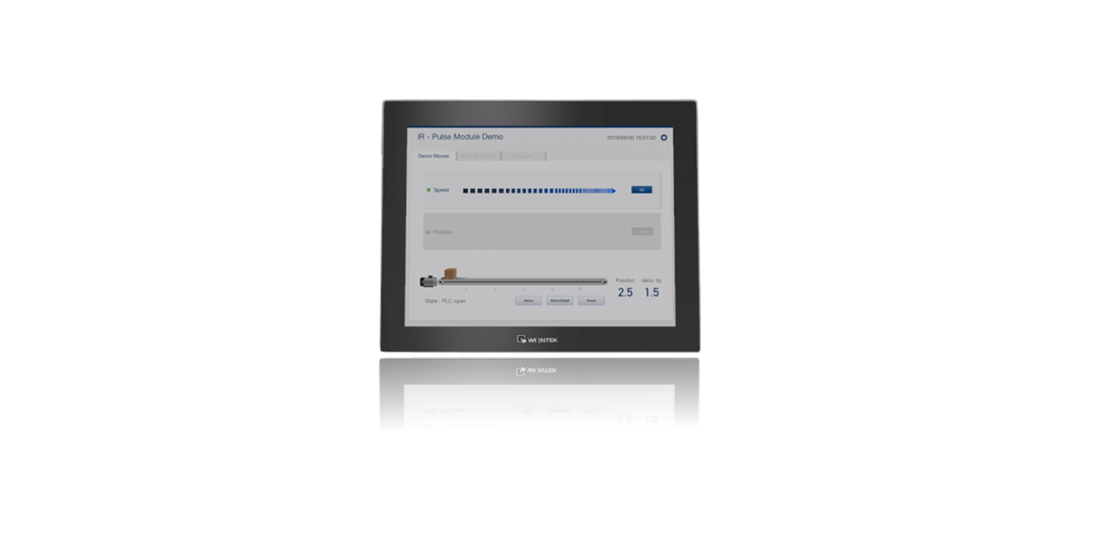

The WEINVIEW man-machine interface cMT3155X weighs about 2.75kg, input power: 24±20%VDC, installation method: Panel installation, VESA wall mount 75 x 75 mm, protection level: NEMA4 / IP66 Compliant Front Panel.
peculiarity
15" 1024 x 768 IPS LCD
Quad-core Cortex-A17 CPU with high performance 3D processor
Reinforced glass capacitive touch panel
Fanless cooling system
Built-in 4 GB storage memory and perpetual calendar
Support SD card to expand storage capacity
CAN Bus supports the CANopen communication protocol
COM1 and COM3 RS-485 2W support MPI 187.5K at the same time
COM1 and COM3 RS-485 and CAN Bus built-in isolation protection lines
Built-in power isolation
NEMA4 / IP66 Front panel protection class
Product parameter
reveal
Display: 15 "IPS
Resolution: 1024x768
Brightness: (cd/m2) 400
Contrast ratio: 1000:1
Backlight type: LED
Backlight life: >50,000 hours
Color: 16.2M
LCD viewing Angle (T/B/L/R) : 89/89/89/89
Point distance (mm) : 0.297(H)x 0.297(V)
Touch panel
Type: Reinforced glass capacitive touch panel
Hardness: 7H
memorizer
Flash Memory: 4 GB
Memory (RAM) : 1GB
Processor: Quad-core 32-bit RISC 1.6GHZ
SD card slot: SD/SDHC
USB Host: USB 2.0 x 1
USB Client: None
I/O interface
Ethernet interfaces: LAN 1:10/100/1000 Base-Tx1, LAN 2:10/100 Base-Tx1
Serial interface: Con.A: COM1 RS-485 2W/4W, COM3 RS-485 2W, CAN Bus Con.B:COM1 RS-232 4W, COM3 RS-232 2W*
RS-485 Dual isolation protection: Yes
CAN Bus: Yes
HDMI: None
Sound output: Built-in mono speaker Audio Line Out - 3.5mm jack x 1
Perpetual calendar: Built-in
Power source
Input power: 24±20%VDC
Power isolation: Built-in
Power consumption: 1.3A@24VDC
Withstand voltage: 500VAC (1 min)
Insulation impedance: more than 50MΩat 500VDC
Vibration resistance: 10 to 25Hz (X, Y, Z axis 2G 30 min)
specification
PCB coating: Yes
Case material: Front panel: engineering plastic, back cover: aluminum
Overall dimensions: 366 x 293 x 51.5mm
Opening size: 352 x 279 mm
Weight: About 2.75 kg
Mounting method: Panel mounting, VESA wall mount 75 x 75 mm
Operating environment
Protection level: NEMA4 / IP66 Compliant Front Panel
Storage temperature: -20° - 60° C (-4° - 140°F)
Operating temperature: 0° -- 50° C (32° -- 122F)
Relative ambient humidity: 10% -- 90% (non-condensing)
authentication
CE: complies with the CE certification standard
UL: cULus Listed
