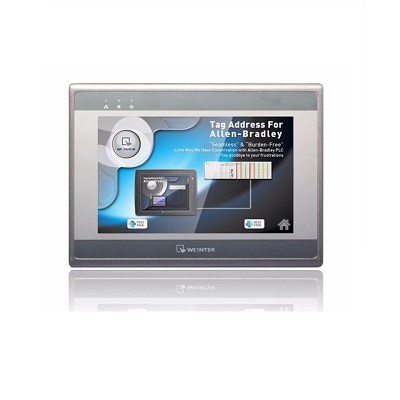

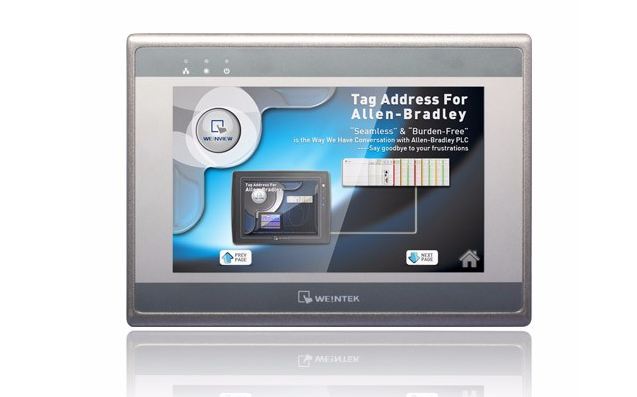

WEINVIEW human machine interface eMT3070B aluminum alloy shell with new colors and fashion design; 7' 800x480 TFT LCD; Fanless cooling system; Built-in 256MB storage memory and calendar; NEMA4/IP66 panel protection level; USB master interface and USB slave interface; SD card slots support SD and SDHC cards. Built-in power isolation guard; Com1 or Com3 RS485 2W supports MPI 187.5K. CAN Bus device supports CANopen communication protocol; Com1 / Com3 RS485 and CAN Bus built-in electrical isolation design.
Product parameter
Monitor: 7 "TFT
Resolution: 800*480
Brightness (cd/m²) : 500
Flash memory: 256MB
Memory: 256MB
Input power: 24±20%VDC
Power consumption: 400mA@24VDC
Resistance voltage: 500VAC (1min)
Overall dimensions (W×H×D) : 200.3 × 146.3 × 42.5mm
Hole size: 192 × 138mm
Weight: about 0.9 kg
Installation mode: Panel installation
Operating environment temperature: -20° -- 50 ° C (32° -- 122°F)
Relative ambient humidity: 10% -- 90% (no condensation)
