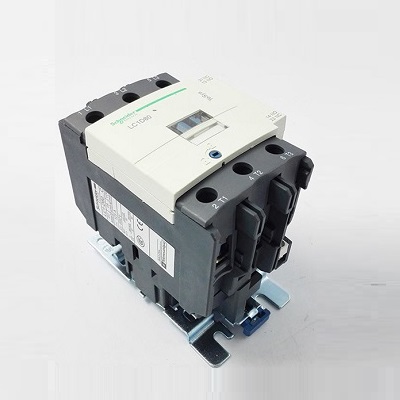

Introduction: Schneider LC1-D80 AC contactor When the contactor electromagnetic coil is not powered, the spring reaction force and the weight of the core hold the main contact in the open position. When the electromagnetic coil is connected to the control voltage (generally rated voltage) through the control loop, the electromagnetic force overcomes the reaction force of the spring and draws the armature to the static core, driving the main contact to close, closing the circuit, and the auxiliary contact follows the action.
Product parameter
Product Line: TeSys
Product Name: D
Product type: contactor
Product short name: LC1D
Contactor application field:
Applied to AC loads with power factor greater than or equal to 0.95
Applied to switch on and off normally started squirrel cage motor
Category of use:
AC-1
AC-3
AC-4
Number of poles: 3P
Main contact type: 3 NO
Rated operating current [le] :
80 A(AC-1.Ues= 440 V e= 60C
125 A(AC-3.Uec= 440 e= 60C)
Control loop voltage: 220 V AC 50/60 Hz
Auxiliary contact type: 1 NO +1 NC
Rated operating voltage [Ue] :
Power supply circuit: = 690 V
Power supply circuit: <= 300 V
Motor power (kw) :
55 kW (500 V) AC-3
45 kW (1000 V) AC-3
22 kW (220/240 V) AC-3
37 kW (380/400 V) AC-3
45 kW (415/440 V) AC-3
45 kW (660/690 V) AC-3
15 kW (400 V) AC-4
Electrical life:
0.8 kA2.s(AC-1)
1.5kA2.s (AC-3)
2.5 kA2 s(40-3)
Mechanical life: 4 kA².S
** Maximum operating frequency: 3600 times per hour (ambient temperature e= 60℃)
Action time
Closed: 20... 35 ms
Break: : 6... 20 ms
Control voltage limit
Release: 0.3... 0.6 Uc 50/60 Hz
Run: 0.8... 1.1 Uc 50 Hz
Height: 127mm
Width: 85mm
Depth: 130mm
Control loop characteristics: AC 50/60 Hz
Rated impulse withstand voltage [Uimp] : 8 kV (symbol IEC 60947)
Product weight: 1.59kg
