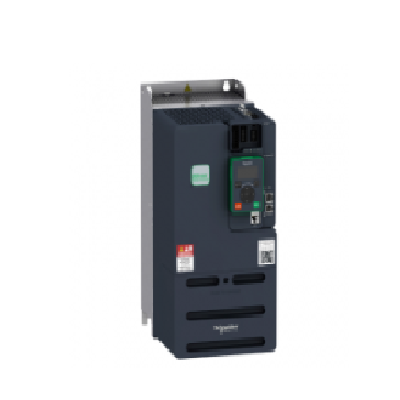

Introduction: Schneider/ Schneider inverter ATV212H075N4 motor power is 0.75kW, power supply frequency is 50... 60 Hz - 5... 5%, rated power supply voltage 380... 480 V - 15... 10%, Class C2 EMC filter.
Product parameter
Product short name ATV212
Product Application scenario Asynchronous motor
The number of grid phases is 3
Motor power (kW) 0.75kW
Motor power 40 hp
Supply voltage range 323... 528 V
Power supply frequency 50... 60 Hz - 5... 5%
Line current 44.7A at... Upper 480 V
56.7A in... Upper 380 V
Product range Altivar 212
Product Type Frequency converter
Applications Pumps and fans in HVAC
Communication port protocol APOGEE FLN
Serial Modbus
BACnet
METASYS N2
LonWorks
Rated supply voltage [Us]380... 480 V - 15... 10%
EMC Filter Class C2 EMC filter
IP protection level IP21
Additional information Apparent power 44.6 kVA in... Upper 380 V
Continuous output current 58.5A at... Upper 380 V
58.5A in... Up 460 V
*** Large transient current 64.4A for 60 s
Inverter output frequency 0.5... 200 Hz
Velocity range 1... 10
Speed accuracy +/- 10% nominal slip 0.2Tn to Tn
Local signal indicates 1 LED (red) for a live DC bus:
Output voltage <= power supply voltage
Isolation Electrical isolation between the main power supply and the control power supply
Cable type without mounting kit: 1 wire IEC cable in... Upper 45 °C, copper 90 °C/XLPE/EPR
Without mounting kit: 1 line IEC cable in... Upper 45 °C, copper 70 °C/PVC
Comes with UL Class 1 kit: 3-wire UL 508 cable in... Upper 40 °C, copper 75 °C/PVC
Electrical connection VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: Terminal 2.5 mm² / AWG 14
L1/R, L2/S, L3/T: Terminal 50 mm² / AWG 1/0
Fastening torque 0.6N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
24 N.m, 212 lb. Interior (L1/R, L2/S, L3/T)
Internal power supply for reference potentiometers (1 to 10 kOhm): 10.5V DC +/ -5%, < 10A, protection type: overload and short circuit protection
Internal power supply: 24 V DC (21... 27 V), <200 A, protection type: overload and short circuit protection
Sampling period 2 ms +/ -0.5 ms F discrete
2 ms +/ -0.5 ms R discrete
2 ms +/ -0.5 ms RES discrete
3.5ms +/- 0.5ms VIA simulation
22 ms +/- 0.5 ms VIB simulation
Response time FM 2 ms, tolerance +/ -0.5 ms for analog output
FLA, FLC 7 ms, tolerance +/ -0.5 ms for discrete output
FLB, FLC 7 ms, tolerance +/ -0.5 ms for discrete output
RY, RC 7 ms, tolerance +/ -0.5 ms for discrete output
Accuracy +/ -0.6% (VIA) for temperature variations of 60 °C
+/ -0.6% (VIB) for temperature variations of 60 °C
+/- 1% (FM) is used for temperature variations of 60 °C
Linearity error VIA: *** Maximum value +/ -0.15 % for input
VIB: *** Maximum value +/ -0.15 % for input
FM: +/ -0.2% applies to output
Analog output model FM can be configured by switching voltage 0... 10 V DC, impedance: 7620, resolution 10 bits
FM can be configured by switching current 0... 20 mA, impedance: 970, resolution 10 bits
Output type configurable relay logic: (FLA, FLC) NO - 100,000 times
Configurable relay logic: (FLB, FLC) NC-100000 times
Configurable relay logic: (RY, RC) NO - 100,000 times
*** Small switching current [Imin]3 mA in... Configurable relay logic is available on the upper 24 V DC
*** Large switching current 5 A in... On 250 V AC in... Resistive (load) Load - cos phi = 1 - L/R = 0 ms (FL, R)
5 A in... On 30 V DC in... Resistive (load) Load - cos phi = 1 - L/R = 0 ms (FL, R)
2 A in... On 250 V AC in... Inductive load Load - cos phi = 0.4 -L /R = 7 ms (FL, R)
2 A in... On 30 V DC in... Inductive load Load - cos phi = 0.4 -L /R = 7 ms (FL, R)
Digital input type F Programmable 24 V DC, with 1 level PLC, impedance: 4700
R Programmable 24 V DC, with 1 level PLC, impedance: 47
