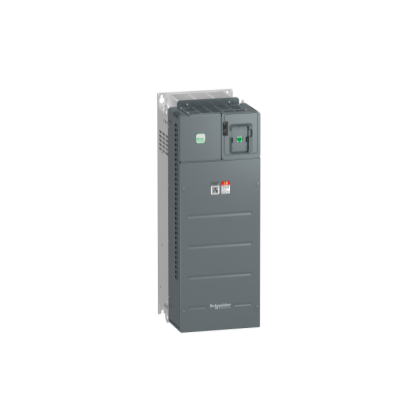

Introduction: ATV610 inverter is suitable for 380 -- 415V three-phase asynchronous motors with power range of 0.75 to 160kW. Can be widely used in standard load control system. Comply with IEC/EN 61800-3, IEC/EN 61000-4, IEC/EN60721-3, IEC/EN 61800-5-1 and other ** standards.
Product details
Product line: Easy Altivar 610
Product type: Frequency converter
Application: Fan, pump, compressor, conveyor belt
Product short name: ATV610
Variable: Standard version
Product features: asynchronous motor
Installation type: Cabinet mounted
EMC Filter: Integrated motor cables conforming to EN/IEC 61800-3 category C4 and 50 m ** long
IP protection level: IP20
Cooling method: forced ventilation
Power supply frequency: 50... 60 Hz +/-5 %
Network phases: 3 phases
Rated power supply voltage [Us] : 380... 460 V - 15... 10%
Motor power (kW) :
90 kW for standard load
75 kW for heavy duty
Motor power:
125 hp for standard load
100 hp is suitable for heavy loads
Expected line Isc: 50 kA
Output frequency: 0.0001... 0.5kHz
Rated switching frequency: 2.5kHz
Switching frequency: 1... 8 kHz adjustable
number of preset speeds: 16 preset speeds
Width: 268.0mm
Height: 748.0 mm
Depth: 307.0 mm
Product net weight: 51.26kg
Analog input quantity: 3
