A single product can be set into various detection modes through the self-learning button, which can realize the output delay function, position accurate detection function, NO/NC programmable output function.
M18 cylindrical, small, square, fork, frame, fiber and other shapes of products
Can detect opaque or translucent objects, color, color scale, water - based liquids, etc
advantage
According to the Osiconcept intelligent self-learning function, a single sensor can realize 5 detection modes, convenient for users to set and use in different environments
Variety, can meet a variety of industry specialization needs
Scope of application
Small machine manufacturing
Access control system
Counting control
Packaging equipment
Material handling
Transfer equipment
Textile machinery
Main information
Series number
Optimized type
Electronic sensor type
Photoelectric sensor
Photoelectric sensor application
object
Sensor name
XUB

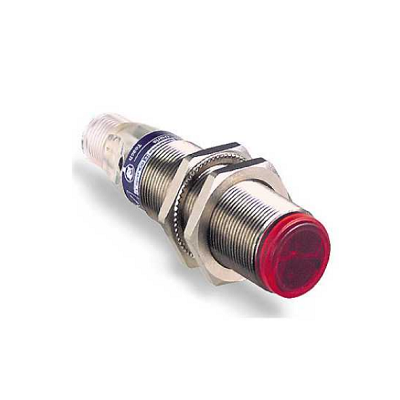

Sensor design
M18
material
metal
Wiring technique
Third line
Power supply circuit type
Direct current
Detection system
Incoming compound
Electrical connection
1 pin connector M12, 4 pins
Rated induction distance
4 m to double
Output type
Solid state
Output signal type
discretization
output
1 NO
Output type
PNP
Cabinet material
Nickel-plated brass
Line of sight type
Axial direction
launch
Infrared reaction
Output attachment
There is no
Switching capability to mA
≤ 100 mA, overload and short circuit protection
Switching frequency
<= 500 Hz
range
OsiSense XU
Us Rated power supply voltage
12... 24 V DC has reverse polarity protection
diameter
18 mm
Supplementary information
* Large sensing distance
5,5 meters to double
Power supply voltage limitation
10... 36 V DC
Current consumption
35 mA at no load
LED status
1 LED (yellow) for output status
Voltage drop
1, 5V (closed state)
Delay * initial upward
< 15 ms
Delayed response
< 1 ms
Delayed recovery
< 1 ms
Lens material
PMMA
length
60 mm
Product weight
0,05 kg
set
No sensitivity adjustment
environment
IP protection level
IP65 double insulation complies with IEC 60529
IP67 double insulation complies with IEC 60529
anti-vibration
7 gn, amplitude +/ -1.5 mm (f = 10... 55 Hz) in accordance with IEC 60068-2-6
Impact resistance
30 gn, duration 11 ms in accordance with IEC 60068-2-27
Product certificate
CE
CSA
UL
Operating ambient temperature
25... 55 °C
Storage ambient temperature
- 40... 70 °C
