Harmony's modular design combines ease of installation, flexibility of use and durability to meet the requirements of most industrial applications around the world.
Product parameter
Product line Harmony XB5
Product type button
Product short name XB5
Frame material plastics
Dark grey plastic
Control head type standard
Fixed ring material plastic
Installation diameter 22 mm
Each unit sold individually in quantity 1
Signal unit head shape is round
Operating head type spring return

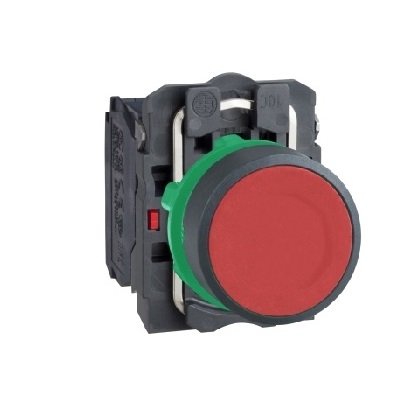

Joystick appearance Red flat head, unmarked
Contact type 1NO + 1NC
Contact action slow break
The connection capacity is tightened, and <= 2 x 1.5 mm² fast loading terminals comply with EN/IEC 60947-1
Bolt fastening, 1 x 0.22... 2 x 2.5 mm² fast loading terminals without loading conforms to EN/IEC 60947-1
Supplementary information
Height 42 mm
Width 30 mm
Depth 52 mm
ISO n°1 Terminal (21-22)NC
(13-14)NO
High pressure washer impedance 7000000 Pa in... Upper 55 °C, distance: 0.1m
The contact line uses standard contact
Forced open has conform to EN/IEC 60947-5-1 Appendix K
Operation Propagation 1.5mm (NC to change electrical state)
2.6mm (NO to change electrical state)
4.3mm (total stroke)
Control force 3.5N NC Change electrical state
3.8 N NO Change the electrical status
Mechanical life 10000000 times
Tightening torque 0.8... 1.2N.m in line with EN 60947-1
Screw head shape cross compatible with Philips screwdrivers
Cross compatible pozidriv ** Screwdriver
One slot compatible Flat Ø4 mm screwdriver
Screwdriver compatible with one slot Flat Ø5.5 mm
Contact material Silver alloy (Silver/nickel)
Short circuit protection 10 A fuse tube type gG conforms to EN/IEC 60947-5-1
The prescribed heating current [Ith] 10 A conforms to EN/IEC 60947-5-1
Rated insulation voltage [Ui] 600 V (pollution level 3) in accordance with EN/IEC 60947-1
Rated impulse withstand voltage [Uimp] 6 kV in accordance with EN/IEC 60947-1
Rated operating current [Ie] 3 A in... Upper 240 V, AC-15, A600 in accordance with EN/IEC 60947-5-1
6 A in... Upper 120 V, AC-15, A600 in accordance with EN/IEC 60947-5-1
0.1A in... Upper 600 V, DC-13, Q600 comply with EN/IEC 60947-5-1
0.27A in... Upper 250 V, DC-13, Q600 in accordance with EN/IEC 60947-5-1
0.55A in... Upper 126 V, DC-13, Q600 comply with EN/IEC 60947-5-1
1.2 A in... Upper 600 V, AC-15, A600 comply with EN/IEC 60947-5-1
Electrical life 1000000 times AC-15, 2 A in... Up to 230 V, work rating <3600 cycles/hour, load factor: 0.5 in accordance with EN/IEC 60947-5-1: Appendix C
1000000 AC-15, 3 A in... Upper 120 V, work rating <3600 cycles/hour, load factor: 0.5 in accordance with EN/IEC 60947-5-1: Appendix C
1000000 AC-15, 4A in... Upper 24 V, work rating <3600 cycles/hour, load factor: 0.5 in accordance with EN/IEC 60947-5-1: Appendix C
1000000 DC-13, 0.2A in... Upper 110 V, work rating <3600 cycles/hour, load factor: 0.5 in accordance with EN/IEC 60947-5-1: Appendix C
1000000 DC-13, 0.5A in... Upper 24 V, work rating <3600 cycles/hour, load factor: 0.5 in accordance with EN/IEC 60947-5-1: Appendix C
Electrical Reliability Λ < 10exp(-6) in... Up to 5 V and 1 mA in a clean environment in accordance with EN/IEC 60947-5-4
Λ < 10exp(-8) in... Upper 17 V and 5 mA in a clean environment in accordance with EN/IEC 60947-5-4
Equipment Introduction Products (non-components)
Shielded insulation No
Customizable 1
GCR BRIDGE XB5AACUST04
Model XB5
environment
Protective treatment TH
Storage ambient temperature -40... 70 °C
Operating temperature -40... 70 °C
Overvoltage Class II conforms to IEC 60536
The IP protection level IP66 complies with IEC 60529
IP67
IP69
IP69K
NEMA Protection Level NEMA 13
NEMA 4X
IK Protection grade IK03 complies with IEC 50102
