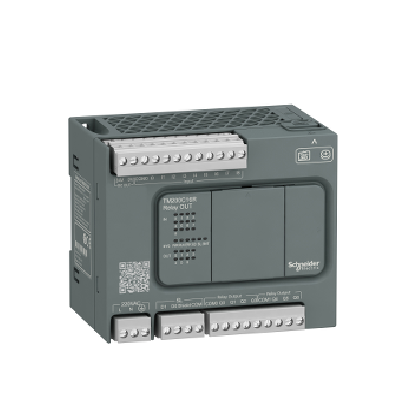

Introduction: Schneider/ Schneider Programmable controller TM200C16R One type M200 programmable logic controller, 16 point IO, relay output, "small body, big wisdom", rich in functions, flexible expansion, belongs to Easy Series, suitable for general I/O scale logic control machines.
Product details
Product Series: Easy Modicon M200
Product type: Programmable controller
Rated supply voltage [Us] : 100... 240 V AC
Discrete quantity I/O number: 16
Discrete input quantity:
I8:1 Normal input
I2… I5:4 Quick input
I0, I1, I6, I7:4 High speed input
Discrete quantity Output number: 7 relays
Discrete input voltage: 24 V
Discrete input voltage type: DC
Discrete input current: 7 mA suitable input
Discrete input logic: Well or source (positive/negative) class 1 complies with EN/IEC 61131-2
Discrete output voltage:
24 V DC
220 V AC
Discrete output current: 2 A
Solid state output type: Relay normally on
Power consumption: VA51... 63 VA in... Up to 100... 240 V AC (Max input/output)
Number of I/O expansion modules:
4 and 64 discrete outputs are suitable for transistor outputs
4 and 71 discrete outputs for relay outputs
Supply voltage range: 85... 264 V
Network frequency: 50/60 Hz
Instantaneous peak current: 50 A
Voltage status 1 Guarantee: >= 15 V Applicable input
Voltage status 0 Guarantee: <= 5 V suitable for input
Input impedance: 3.3 kOhm suitable for discrete input
Response time:
10 ms off, Q0... The Q6 terminal is suitable for relay output
10 ms open, Q0... The Q6 terminal is suitable for relay output
5 µs off, I0, I1, I6, I7 terminals for high-speed inputs
5 µs open, I0, I1, I6, I7 terminals for high-speed inputs
100 µs off, I2... The I5 terminal is suitable for fast input
35 µs on, I2... The I5 terminal is suitable for fast input
With 100 µs off, the I8 terminal is suitable for normal input
35 µs open, the I8 terminal is suitable for normal input
Configurable filtering time:
0 ms Suitable for input
3 ms Suitable for input
12 ms Suitable for input
Output voltage limit:
30 V DC
250 V AC
Connection Type -- Terminal connection:
4 A in... COM 0
4 A in... COM 1
Electrical life:
100,000 cycles AC-12, 240 V, 480 VA, resistance (load)
100000 times DC-12, 24V, 48W, resistance (load)
Switching frequency: 0.1Hz with maximum load
Mechanical life: 20000000 times applicable relay output
** Small load: 10 mA in... Upper 5 V DC for relay output
Storage capacity: 512 bytes of internal flash storage and 10,000 instructions for program backup
Data storage device: 32 GB micro SD card (optional)
Battery type: BR2033 Li-CFx (Lithium fluoride fossil ink), battery life: 5 years
Cumulative running time: 3 years in... Up to 25 °C (by interrupting the power supply)
1K instruction execution time: 0.3ms for events and periodic tasks
Sensor Power supply: 24 V DC at... The upper 250 mA is supplied by the controller
Mark: CE
Installation mode
Top Cap type: TH35-15 rail mounted according to IEC 60715
Top cap type: TH35-7.5 boards or boards with fixed kits according to IEC 60715
Height: 90 mm
Depth: 70 mm
Width: 110 mm
Net weight: 0.359kg
Ambient temperature: 0... 55 °C (vertical mounting)
Storage ambient temperature: -25... 70 °C
Pollution level: <= 2
Working altitude: 0... 2000 m
Storage height: 0... 3000 m
