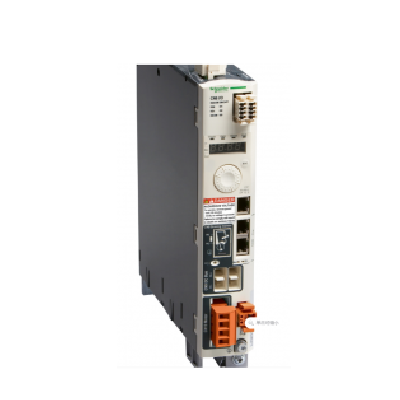

Introduction: Schneider/ Schneider LXM32A series motion servo driver LXM32AU60N4, power supply frequency 50/60 Hz-5... 5%, nominal power 0.35 kW at... On 230 V 8 kHz, 0.4 kW in... Up to 400 V 8 kHz.
Product parameter
The product range Lexium 32
Product Type Motion servo driver
Product short name LXM32A
Drive format book
The number of grid phases is three phases
Rated supply voltage [Us]200... 240 V - 15... 10%
380... 480 V - 15... 10%
Supply voltage range 170... 264 V
323... 528 V
Power supply frequency 50/60 Hz-5... 5%
Network frequency 47.5... 63 Hz
EMC filter integrated
Continuous output current 1.5A at... Upper 8 kHz
Output current 3s peak 6 A for 5 s
maximum continuous power400 W in... Upper 230 V
800 W in... Upper 400 V
Nominal power 0.35 kW at... On 230 V 8 kHz
0.4 kW in... Up to 400 V 8 kHz
Line current 1.9A, 106 % of THDI in... Upper 380 V, 2 mH with external reactor
1.6A, 116 % of THDI in... Upper 480 V, 2 mH with external reactor
1.2A, 201% of THDI in... Up 480 V, no reactor
1.8A, 187 % of THDI in... 380 V, no reactor
Supplementary information Switching frequency 8 kHz
Overvoltage Class III
maximum leakage current30 mA
Output voltage <= power supply voltage
Electrical insulation between power and control
Cable type Single strand IEC cable (Temperature: 50 °C) Copper 90 °C XLPE/EPR
Electrical connection terminal, clamping force: 3 mm², AWG 12 (CN8)
Terminal, clamping force: 5 mm², AWG 10 (CN1)
Terminal, clamping force: 5 mm², AWG 10 (CN10)
Tighten torque CN8:0.5N.m
CN1: 0.7N.m
CN10: 0.7N.m
Number of discrete inputs 1 Capture discrete inputs
2 Discrete security input
4 Logical discrete input
Digital quantity input type capture (capacitor
Logic (DI)
Safety (compliment of STO_A, compliment of STO_B)
DI: 0.25ms discrete during sampling
Discrete input voltage 24 V DC suitable for capture
24 V DC applicable logic
24 V DC for safe application
Discrete quantity input logic is positive (compliment of STO_A, compliment of STO_B) at state 0: < 5 V at state 1: > 15 V conforming to EN/IEC 61131-2 type 1
Positive (DI) in state 0: > 19 V in state 1: < 9 V conforms to EN/IEC 61131-2 type 1
Positive or negative electrode (DI) in state 0: < 5 V in state 1: > 15 V conforms to EN/IEC 61131-2 type 1
Response time <= 5 ms compliment of STO_A, compliment of STO_B
Discrete quantity output quantity 2
Output Type Logic Output (DO)24 V DC
Discrete output voltage <= 30 V DC
Discrete quantity output logic positive or negative (DO) in accordance with EN/IEC 61131-2
Contact flutter time <= 1 ms compliment of STO_A, compliment of STO_B
2 µs applicable capacitance
0.25 µs... 1.5 ms for DI
Brake current 50 mA
Output response time 250 µs (DO) Suitable for discrete output
Control signal type servo motor encoder feedback
Protection Type against voltage reverse: input signal
Prevent short circuit Output signal: output signal
Safety feature STO(Safety Torque Interrupt), integrated
Safety level SIL 3 complies with EN/IEC 61508
PL = e conforms to ISO 13849-1
Communication interface CANmotion, integration
CANopen, integration
Modbus, integration
Port type RJ45 (marked CN4 or CN5) for CANmotion
RJ45 (marked CN4 or CN5) applies to CANopen
RJ45 (marked CN7) For serial Modbus
Access method from (station)
commissioning port2 cable RS485 multipoint Serial port Modbus
Transfer rate 1 Mbps for bus lengths of... 4 m for CANopen, CANmotion
125 kbps for bus lengths of... 500 m for CANopen, CANmotion
250 kbps for bus lengths of... 250 m for CANopen, CANmotion
50 kbps for bus lengths of... 1000 m for CANopen, CANmotion
500 kbps for bus lengths of... 100 m for CANopen, CANmotion
9600, 19200, 38400 bps for bus lengths of... 40 m Serial port Modbus is applicable
