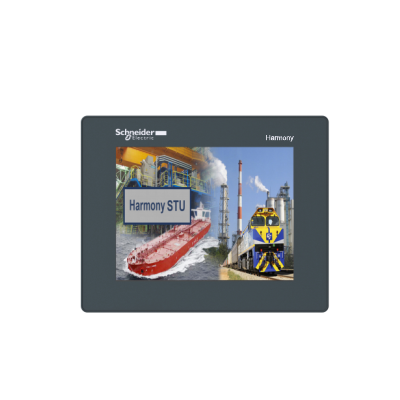

There are three indicators of accuracy: precision, accuracy and precision. How to know these three indicators? Schneider/ Schneider Harmony STO & STU Series touch screen HMISTU855 5.7 "QVGA TFT color, processor frequency is 333 MHz, operating temperature range is 0 to 50 °C, storage temperature is -20... 60 degrees Celsius.
Product parameter
Monitor size: 5.7 inches
Display type: QVGA TFT color touch screen
Display color: 65536 colors
Monitor resolution: 320 x 240 pixels QVGA
Touch screen: analog volume
Backlight life: 50,000 hours
Brightness: Level 16
Rated power supply voltage [Us] : 24 V DC
Power supply: external (source)
Supply voltage range: 20.4... 28.8V
Instantaneous peak current: 30 A
Power consumption W: 6.8 W
Processor frequency: 333 MHz
Fixed mode: Ø22 mm hole
Cabinet materials: PC/PBT and PAA
Height: 129.15 mm
Width: 163 mm
Depth: 56.5mm
Resistance to instantaneous power failure: 7 ms
Operating temperature: 0... 50 °C
Storage ambient temperature: -20... 60 °C
Relative humidity: 0... 85 % no condensation
Working altitude: <= 2000 m
IP protection level:
IP20 complies with IEC 60529 (rear panel)
IP65 in compliance with IEC 60529 (front panel)
NEMA Protection Grade: NEMA 4X Front Panel (for indoor use)
Shock resistance: 15 gn for 11 ms in accordance with IEC 60068-2-27
Anti-vibration:
+/ -3.5mm (f = 5... 9 Hz) in accordance with IEC 60068-2-6
1 gn (f = 9... 150 Hz) in accordance with IEC 60068-2-6
Anti-electromagnetic domain: 10 V/m in accordance with IEC 61000-4-3
