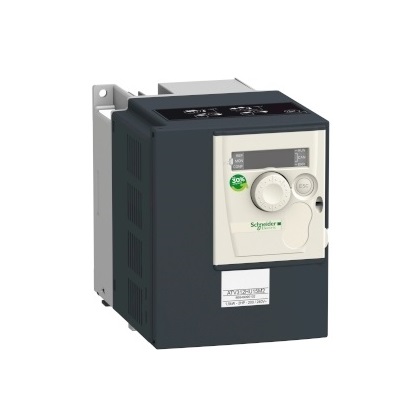

Introduction: ATV312 series general purpose three-phase squirrel cage asynchronous motor inverter protection level ATV... The M3X series is IP20, the upper part of the cover has no cover; ATV... The upper part of M2 and N4 series is IP31 and IP41, and the connection terminal is IP21
Product parameter
Product line Altivar 312
Product Type Frequency converter
Product Application scenario Asynchronous motor
Application field Simple machinery
Assembly mode with heat sink
Component name ATV312
Motor power (kW) 1.1kW
Motor power 1.5hp
Rated supply voltage [Us]200... 240 V - 15... 10%
Power supply frequency 50... 60 Hz - 5... 5%
The number of grid phases is single phase
Line current 12.1 A at... Up to 200 V, Isc is equal to 1 kA
10.2A in... Upper 240 V
EMC filter integrated
Apparent power 2.4 kVA
** Large transient current 10.4A for 60 s
Power consumption W74 W Rated load current
Velocity range 1... 50
Asynchronous motor control profile Factory Settings: Constant torque
The sensorless flux vector control uses PWM motor control signal
Supply voltage range 170... 264 V
The expected line is Isc1 kA
Continuous output current 6.9A in... Up 4 kHz
Output frequency 0... 500 Hz
Rated switching frequency 4 kHz
Switching frequency 2... 16 kHz adjustable
Marking CE
Operation position Vertical direction +/ -10 °
Height 143 mm
Width 107 mm
Depth 152 mm
Product weight 1.8kg
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
