The modular design of the Harmony series combines ease of installation, flexibility of use and durability of the product to meet the requirements of most industrial applications worldwide.
Product details

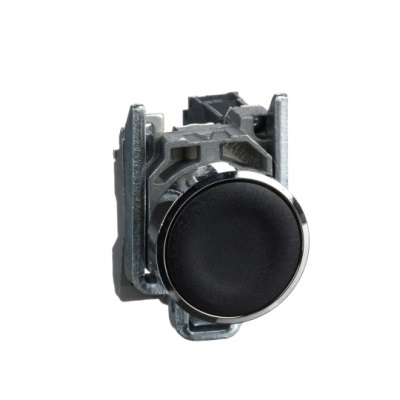

Product line Harmony XB4
Product type button
Product short name XB4
Frame material nickel-plated metal
Fixed ring material Zamak
Installation diameter 22 mm
Each unit sold individually in quantity 1
Signal unit head shape is round
Operating head type spring return
Joystick shape black flat head, unmarked
Control head type standard
Contact type 1 NO
Contact action slow break
The connection capacity is tightened, and <= 2 x 1.5 mm² fast loading terminals comply with EN/IEC 60947-1
Bolt fastening, 1 x 0.22... 2 x 2.5 mm² fast loading terminals without loading conforms to EN/IEC 60947-1
Supplementary information Height 47 mm
Width 30 mm
Depth 52 mm
ISO n°1 Terminal (13-14)NO
Net weight 0.08 kg
High pressure washer impedance 7000000 Pa in... Upper 55 °C, distance: 0.1m
The contact line uses standard contact
Forced open none
Operational Propagation 2.6mm (NO change electrical state)
4.3mm (total stroke)
Control force 3.8N NO Change electrical status
Mechanical life 10000000 times
Tightening torque 0.8... 1.2N.m in line with EN 60947-1
Screw head shape cross compatible with Philips screwdrivers
Cross compatible pozidriv ** Screwdriver
One slot compatible Flat Ø4 mm screwdriver
Screwdriver compatible with one slot Flat Ø5.5 mm
Contact material Silver alloy (Silver/nickel)
Short circuit protection 10 A fuse tube type gG conforms to EN/IEC 60947-5-1
The prescribed heating current [Ith]10 A conforms to EN/IEC 60947-5-1
Rated insulation voltage [Ui]600 V (pollution level 3) in accordance with EN/IEC 60947-1
Rated impulse withstand voltage [Uimp]6 kV in accordance with EN/IEC 60947-1
Protective treatment TH
Storage ambient temperature -40... 70 °C
Operating temperature -40... 70 °C
The overvoltage Class I conforms to IEC 60536
IP protection level IP66 screwed
IP67
IP69
IP69K
NEMA Protection Level NEMA 13
NEMA 4X
IK Protection grade IK06 complies with IEC 50102
Anti-vibration 5 gn (f= 2... 500 Hz) in accordance with IEC 60068-2-6
