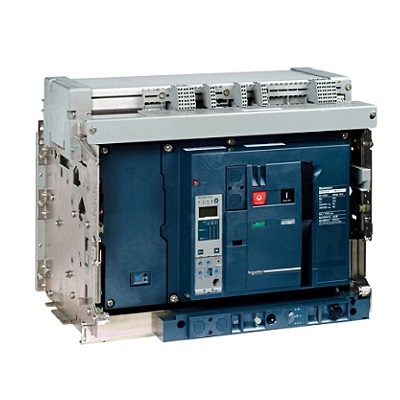

Introduction: Schneider/ Schneider Air Circuit Breaker NW40 H10 4P Drawer type body Masterpact NW series, neutral line position for left side, drawer type installation type, in... The upper 40 ° C rated current is 4000A and is not protected.
Product parameter
Product line: Masterpact NW
Product type: ontology
Masterpact NW40 1000V
Circuit breaker name: Masterpact NW40HA10
Number of poles: 4P
Position of neutral line: left side
Network type: AC
Circuit breaker model: H10
Application of isolation function: in accordance with IEC 60947-2
Use Category: Category B
Network frequency: 50/60 Hz
Control type (press type) : Button
Installation type: Drawer type
Rated current [In] : 4000 A in... Up 40 degrees Celsius
Rated insulation voltage [Ui] : 1250 V AC 50/60 Hz in accordance with IEC 60947-2
Rated shock tolerance voltage [Uimp] : 12 kV in accordance with IEC 60947-2
Closed capacity [Icm] : 105 kA 1150 V AC in... Up 50/60 Hz
Rated operating voltage [Ue] : 1150 V AC 50/60 Hz in accordance with IEC 60947-2
Breaking ability: 50 kA Icu in... The upper 1150 V AC 50/60 Hz conforms to IEC 60947-2
Using breaking ability [Ics] : 50 kA in... The upper 1150 V AC 50/60 Hz conforms to IEC 60947-2
Protection type: No protection
Mechanical life:
10000 times the maintenance does not comply with IEC 60947-2
20000 maintenance in accordance with IEC 60947-2
Electrical life: 500 times 1150 V AC 50/60 Hz do not maintain comply with IEC 60947-2
Phase spacing: 150 mm
Rated short-time tolerable current [Icw] :
The 50 kA 1 s conforms to IEC 60947-2
The 50 kA 3 s comply with IEC 60947-2
Breaking time: 25 ms
maximum closing response time: 70 ms
Height: 439 mm
Width: 556 mm
Depth: 394.5mm
Compliant with IEC 60947-2
Product certification:
ASTA
ASEFA
Pollution level: 3 in accordance with IEC 60664-1
Operating temperature: -25... 70 °C
Storage ambient temperature: -40... 85 °C
