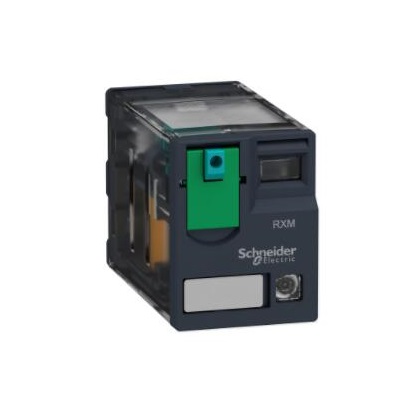

The M0.0 in Siemens plc is the bit memory, also known as the internal coil, used to store the center operation status or other relevant data. RXM2AB2BD | Schneider Schneider Electric intermediate relay, voltage 24 v dc coil, double pole double throw, 12 A switching current plug-in installed
Model feature introduction
RXM series micro relay with LED
SchneiderElectric's compact ZelioRXM microrelays with leds can be used to increase functionality in electrical enclosures, especially for industrial applications, machines/building equipment, and HVAC.
Miniature plug-in relay series with base, RXZE2 type Easy to use - no adjustment required for standard applications Easy to integrate into current equipment, suitable for all voltage test button and relay status mechanical indicator bases for assembly on DIN rails or using screws, ordered separately
Model parameter introduction
Attribute value
Coil voltage 24V DC
Contact configuration double pole double throw
Installation type Insert
Switching current is 12A
Terminal type insertion
Coil resistance 650Ω
** Maximum switching voltage AC 250V
Length 21mm
Depth: 47.7mm
Height 27mm
The dimensions are 21x47.7x27mm
The contact material is silver alloy
** Maximum switching power AC 3kVA
Life 100000 times
** High operating temperature +55°C
Operating temperature range -40→+55°C
** Large switching power DC 336W
Coil power 900mW
** Low operating temperature -40°C
CE, CSA, EN/IEC, GOST, Lloyd, REACH, RoHS, UL
Pole number 2
