The modular design of the Harmony series combines ease of installation, flexibility of use and durability of the product to meet the requirements of most industrial applications worldwide.
Product details
Product series

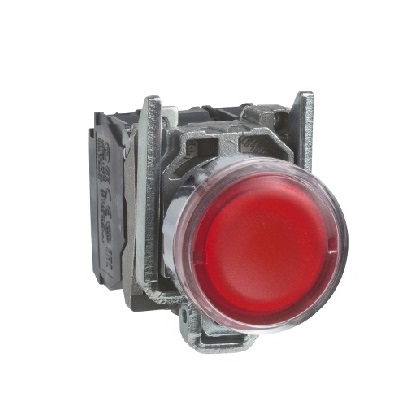

Harmony XB4
Product type
Lighting button
Product short name
XB4
Frame material
Nickel-plated metal
Fixed ring material
Zamak
Mounting diameter
22 mm
Individual sales quantity per unit
1
Control head type
standard
Signal unit head shape
circle
Operation head type
Spring return
Joystick profile
Red flat head
Joystick additional information
With a flat mirror
Contact type
1NO + 1NC
Contact action
Slow break
Wiring capacity
It is secured by bolts. <= 2 x 1.5 mm² fast loading terminals comply with EN/IEC 60947-1
Bolt fastening, 1 x 0.22... 2 x 2.5 mm² fast loading terminals without loading conforms to EN/IEC 60947-1
Lamp source
Universal LED
Lamp holder
Built-in BA 9s base
Rated supply voltage [Us]
110... 120 V AC at... Up 50/60 Hz
Supplementary information
height
47 mm
width
30 mm
depth
57 mm
ISO n°1 terminal
(21-22)NC
(13-14)NO
Net weight
0.097kg
High pressure washer impedance
7000000 Pa in... Upper 55 °C, distance: 0.1m
Contact line use
Standard contact
Force open
This complies with Appendix K of EN/IEC 60947-5-1
Operational communication
1.5mm (NC to change electrical state)
2.6mm (NO to change electrical state)
4.3mm (total stroke)
Control force
3.5 N NC Change the electrical status
3.8N
Mechanical life
Ten million times
Fastening torque
0.8... 1.2N.m in line with EN 60947-1
Screw head shape
Cross compatible with Philips ** screwdriver
Cross compatible pozidriv ** Screwdriver
One slot compatible Flat Ø4 mm screwdriver
Screwdriver compatible with one slot Flat Ø5.5 mm
Contact material
Silver alloy (silver/nickel)
Short circuit protection
10 A Fuse tube type gG conforms to EN/IEC 60947-5-1
Conventional heating current
10 A In accordance with EN/IEC 60947-5-1
Rated insulation voltage
600 V (pollution level 3) in accordance with EN/IEC 60947-1
Rated impulse withstand voltage [Uimp]
6 kV in accordance with EN/IEC 60947-1
Signal type
constant
Current consumption
14 mA
Service life
100000 hours at 25°C and rated voltage
Surge tolerance
1 kV in accordance with IEC 61000-4-5
Supply voltage range
100... 132V AC
Equipment introduction
Products (non-parts)
environment
Protective treatment
TH
Storage ambient temperature
- 40... 70 °C
Operating temperature
- 40... 70 °C
Shock protection level
Level I complies with IEC 60536
