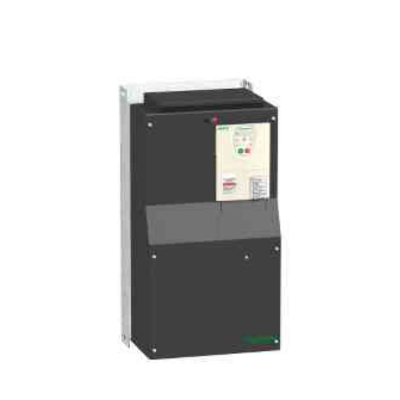

Introduction: Schneider/ Schneider inverter ATV212HD75N4 Speed accuracy +/ -10% nominal slip 0.2Tn to Tn, torque accuracy +/ -15%, instantaneous over-torque 120% nominal motor torque +/ 10% 60s.
Product parameter
Product Line: Altivar 212
Product type: Inverter
Product short name: ATV212
Product function: asynchronous motor
Applications: Pumps and fans in HVAC
Assembly method: with heat sink
Grid phases: 3 phases
Motor power (kW) : 75 kW
Motor power: 100 hp
Rated supply voltage [Us] : 380... 480 V - 15... 10%
Supply voltage range: 323... 528 V
Power supply frequency: 50... 60 Hz - 5... 5%
Network frequency: 47.5... 63 Hz
EMC filter: Class C2 EMC filter
Line current: 141.8A 380V; 111.3 A 480 V
Apparent power: 105.3 kVA 380 V
Expected line Isc: 22 kA
Continuous output current: 160 A 380 V; 160 A 460 V
** Large transient current: 176 A 60 s
Inverter output frequency: 0.5... 200 Hz
Rated switching frequency: 8 kHz
Switching frequency: 6... 16 kHz adjustable; 8... 16 kHz with derating factor
Speed range: 1... 10
Operating position: Vertical +/ -10 °
Width: 320 mm
Height: 630 mm
Depth: 290 mm
Power consumption W: 1945 W
Air flow: 666 m3/h
Function: Intermediate
Specific application: HVAC
IP protection level: IP21
