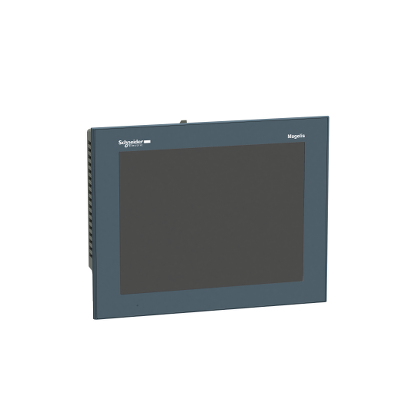

Introduction: Schneider/ Schneider Harmony GTO Series Touch screen HMIGTO5310** Touch screen 640 x 480 VGA-10.4 "TFT-96MB, lithium power supply for internal RAM, autonomous: 100 days, charge time = 5 days (s), battery life = 10 years
Product parameter
Product line: Harmony GTO
Product Type: ** Touch panel
Display color: 65536 colors
Display size: 10.4 inches
Power Supply: External (source)
Operating System: Harmony
Battery Type: Lithium power supply for internal RAM, autonomy: 100 days, charge time = 5 days (s), battery life = 10 years
Terminal type: touch screen display
Display type: backlit color TFT LCD
Display resolution: 640 x 480 pixels VGA
Touch-sensitive area: 1024 x 1024
Touch screen electricity: film resistance, 1000000 times
Backlight life: 50,000 hours white in... Up to 25 °C
Brightness:
Level 16 - Control via touch panel
Level 16 - Control via software
Rated power supply voltage [Us] : 24 V DC
Supply voltage range: 19.2... 28.8V
Instantaneous peak current: 30 A
Power consumption [W] :
12 W When the power supply does not supply to external devices
7 W When the backlight is off
8 W When the backlight dims
17 W
Memory description: Flash EPROM, 96 MB
Data Backup: 512 Kb internal RAM (SRAM)
Product installation: flush installation
Fixed mode: Through 4 screw clips
Front plate material: PPT
Cabinet materials: PPT
Cooling method: natural ventilation
Width: 272.5mm
Height: 214.5mm
Depth: 57 mm
Net weight: 2kg
Operating temperature: 0... 55 °C
Storage ambient temperature: -20... 60 °C
Relative humidity: 10... 90% condensation free
Working altitude: < 2000 m
IP protection level:
IP20 compliant with IEC 60529 (rear panel)
IP65 compliant with IEC 60529 (Front panel)
NEMA Protection Class: NEMA 4X Front Panel (indoor use)
Shock resistance: 147 m/s² X, Y, Z 3 shocks per direction in accordance with EN/IEC 61131-2
Anti-vibration:
3.5mm (f = 5... 9 Hz) -X, Y, Z direction loop 10 times (approx. 100 min) - compliant with EN/IEC 61131-2
1 gn (f = 9... 150 Hz) -X, Y, Z direction loop 10 times (approx. 100 min) - compliant with EN/IEC 61131-2
Antistatic discharge: 6 kV contact discharge in accordance with IEC 61000-4-2 level 3
