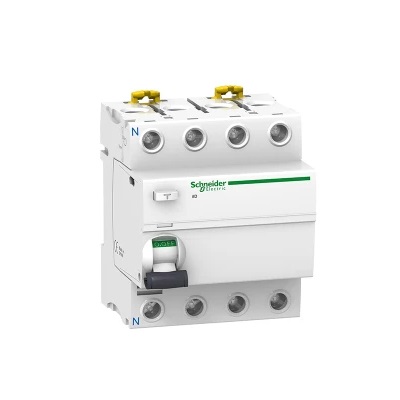

Introduction: Schneider/ Schneider action switch A9R52425 can directly use iC65 electrical accessories,100% work with circuit breakers, can be widely used in civil, commercial buildings, as well as industrial sites and other fields of distribution protection.
Product characteristics
Rated current 25-100A
Rated residual operating current 10mA 30mA 100mA 300mA
Protection Class IP20B(terminal),IP40(installed in distribution box)
Use ambient temperature -5˚C -- +60˚C
Ambient temperature -40˚C - +85˚C
Red on front window indicates circuit breaker failure trip
The green bar 'OFF' on the handle is displayed to ensure reliable breaking of the contact and safe electrical operation downstream
Product parameter
Number of poles: 4P
Neutral line position: left side
Rated current [In] : 25 A
Network type: AC
Residual current sensitivity: 30 mA
Selectivity of residual current action protection: instantaneous type
Leakage current protection level: AC
Network frequency: 50 Hz
Rated short circuit current: 10 kA
Rated insulation voltage [Ui] : 500 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp] : 6 kV
Surge current: 250 A
Contact position indication: Yes
Control type: Handle
Installation type: Locking clamp locks
Mounting method: DIN rail mounting
Width (multiple of 9mm) : 8
Height: 96 mm
Width: 72 mm
Depth: 74.5 mm
Net weight: 0.37kg
Mechanical life: 20000 times
