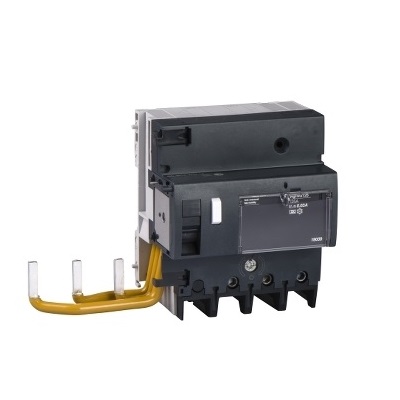

Introduction: The Schneider/ Schneider 19039 circuit breaker operation function is independent of the power supply voltage, Schneider/ Schneider 19039 circuit breaker, withstand 8/20 µs pulse, 3000 A in accordance with IEC 60947-2, 35 mm DIN rail mounting.
Product details
Product type Add residual current device
Product short name Vigi NG125
Pole number 3P
Rated current [In]125 A
Network type AC
Residual current sensitivity 30 mA
Selective transient type of residual current action protection
Leakage current protection Class A
Supplementary information Power distribution system location Downstream power distribution outlet
The grid frequency is 50/60 Hz
Rated operating voltage [Ue]230... 415 V AC 50/60 Hz
Residual current action technique The action function is independent of the supply voltage
The rated insulation voltage [Ui] is 690 V AC 50/60 Hz in accordance with IEC 60947-2
Rated impulse withstand voltage [Uimp]8 kV in accordance with IEC 60947-2
Installation method 35 mm DIN guide rail
Tighten the circuit screws connected to the mcb
Width (multiple of 9mm) 11
Height 118mm
Width 180 mm
Depth 81 mm
Net weight 0.75 kg
Electrical life 10000 times in accordance with IEC 60947-2
Connection capacity Tunnel type terminal 10... 50 mm² flexible cord
Tunnel terminal 16... 70 mm² single strand hard wire
The strip length is 20 mm
Tighten torque 6 N.m
The environment complies with IEC 60947-2
IEC/EN 61009-2-1
IP protection level IP40 conforming to IEC 60947-2
Pollution level 3 complies with IEC 60947-2
Electromagnetic compatibility withstands 8/20 µs pulse, 3000 A in accordance with IEC 60947-2
Humidity and heat resistance 2 conforms to IEC 60068-1
Relative humidity of 95 % in... Up 55 degrees Celsius
The working altitude is 2000 meters
