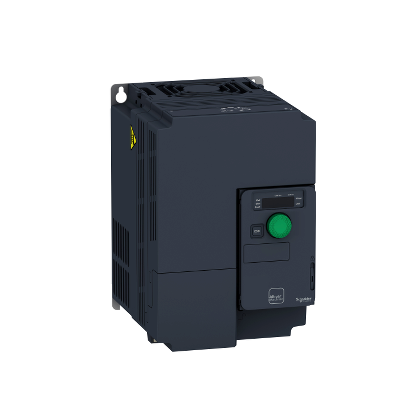

Introduction: ATV320 series inverter supports a variety of intelligent communication protocols; Standard Modbus and CANopen; Support based on Ethernet technology Modbus TCP, Ethernet/IP, Profinet, EtherCAT, and Profibus DP, Devicenet fieldbus. Resistant to harsh chemical and dust environment, in line with IEC60721 standard 3C3, 3S2; High temperature tolerance: 50°C does not drop volume, drop volume can be up to 60°C ambient temperature operation. Consider compact, book type; Support synchronous motor, asynchronous motor. Complete security features: standard STO, SS1, SLS, SMS, GDL; Complete certification: CE, UL, CSA, RCM, EAC, ATEX.
Product parameter
Product series: ATV320
Product type: Frequency converter
Application: Complex machines
Variable standard: Version
Drive format: Compact
Installation type: wall mounted
Communication port protocol:
Modbus serial
CANopen
Rated power supply voltage [Us] : 200... 240 V-15... 10%
Rated output current: 33.0A
Motor power (kW) : 7.5kW for heavy duty
EMC filter: There is no EMC filter
IP protection level: IP20
Synchronous motor control configuration mode: sensorless vector control
maximum output frequency: 0.599 kHz
Instantaneous overtorque: 170... 200% nominal motor torque
Switching frequency:
2... 16 kHz adjustable
4... 16 kHz has
Rated switching frequency: 4 kHz
Brake to Stop: DC injection is used
Line current:
45.3 A in... Upper 200 V (heavy load)
38.2 A in... Upper 240V (heavy load)
** Maximum input current: 45.3A
maximum output voltage: 240 V
Apparent power: 15.9 kVA at... Upper 240V (heavy load)
Network frequency: 50... 60 Hz
relative symmetric network frequency tolerance: 5%
Expected line Isc: 22 kA
base load current at high overload: 33.0A
Power consumption W: Fan: 293.0 W in... Up 200 V, switching frequency 4 kHz
Width: 150 mm
Height: 232.0 mm
Depth: 178.0 mm
Net weight: 3.6kg
Operating position: +/ -10 ° in vertical direction
Cooling air capacity: 60 m3/h
Overvoltage class: III
Regulating loop: adjustable PID regulator
Speed accuracy: +/- 10% nominal slip from 0.2 Tn to Tn
Pollution level: 2
Ambient temperature:
- 10... 50 °C None
50... At 60 °C
Storage ambient temperature: -25... 70 °C
