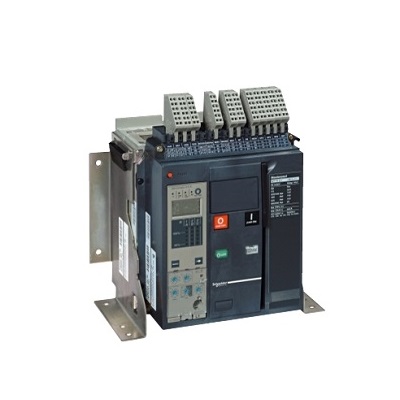

Introduction: Schneider/ Schneider MT 10 N1 3P fixed circuit breaker 47131 Fourteen Micrologic control units can provide complete protection, and convenient user maintenance and monitoring, a variety of optional accessories can meet the changes of use requirements, modular components can be assembled on site at any time.
Product details
Product line MasterPact NT
Product type ontology
The product is called MasterPact NT10
Circuit breaker name MasterPact NT10H2
Pole number 3P
Network type AC
Circuit breaker Model H2
Isolation function is applicable in accordance with IEC 60947-2
Use Category B
Supplementary information grid frequency 50/60 Hz
Control type (press type) button
Installation type fixed
Rated current [In]1000 A in... Up 40 degrees Celsius
The rated insulation voltage [Ui] is 1000 V AC 50/60 Hz in accordance with IEC 60947-2
The rated impulse withstand voltage [Uimp] is 12 kV in accordance with IEC 60947-2
Rated operating voltage [Ue]690 V AC 50/60 Hz in accordance with IEC 60947-2
The transformer is rated 1000 A
Protection Type None
Mechanical life 12500 times not maintained in accordance with IEC 60947-2
Phase spacing is 70 mm
Short circuit instantaneous protection 81... 99 kA
The breaking time is 25 ms
Maximum closing response time50 ms
Height 301 mm
Width 276 mm
Depth 196 mm
Comply with the standard IEC 60947-2
Product certification ASEFA
LCIE
Pollution level 3 complies with IEC 60664-1
Operating temperature -25... 70 °C
Storage ambient temperature -40... 85 °C
