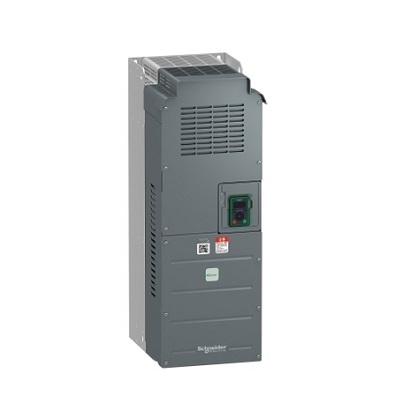

Introduction: ATV610 inverter is suitable for 380 -- 415V three-phase asynchronous motors with power range of 0.75 to 160kW. Can be widely used in standard load control system. Comply with IEC/EN 61800-3, IEC/EN 61000-4, IEC/EN60721-3, IEC/EN 61800-5-1 and other ** standards.
Product details
Product line Easy Altivar 610
Product type converter
Application field fan, pump, compressor, conveyor belt
Product short name ATV610
Variable standard version
Product application scenario Asynchronous motor
Installation Type Cabinet installation
EMC filters integrated with EN/IEC 61800-3 category C4 and 50 m ** long motor cables
IP protection level IP20
Cooling mode forced ventilation
Power supply frequency 50... 60 Hz +/-5 %
The number of network phases is 3
Rated supply voltage [Us]380... 460 V - 15... 10%
Motor power (kW)160 kW Suitable for standard load
132 kW suitable for heavy duty
Motor power 250 hp for standard load
200 hp is suitable for heavy loads
Line current 284 A at... Upper 380 V (standard load)
249.5A in... Upper 460 V (standard load)
237 A in... Upper 380 V (heavy load)
205.9A in... Upper 460 V (heavy load)
Expected line Isc50 kA
Apparent power 198.8 kVA at... Upper 460 V (standard load)
164.0kVA in... Upper 460 V (heavy load)
Continuous output current 302 A at... Standard load is applicable on the upper 2.5 kHz
250 A in... The upper 2.5 kHz is suitable for heavy loads
** Large transient current 332 A at 60 s (standard load)
375 A in 60 s (heavy load)
Asynchronous motor control profile Standard constant torque
Optimize the torque mode
Standard variable torque
Output frequency0.0001... 0.5kHz
Rated switching frequency 2.5kHz
Switching frequency 1... 8 kHz adjustable
number of preset speedsNumber of preset speeds16
Communication port Protocol Modbus Serial
TAB slot A: Communication card, Profibus DP V1
Card Slot A: Logical or analog I/O expansion card
Card slot A: relay output card
Supplementary Information Output voltage <= Power supply voltage
Motor slip compensation is not applicable to permanent magnet synchronous motor rule
Automatic regardless of load
adjustable
Can inhibit
Acceleration and deceleration tilt are linearly adjustable from 0.01 to 9000 s independently
S, U or custom
Brake to stop using DC injection
Protection Type Thermal protection: motor
Motor out of phase: motor
Thermal protection: Drive
Overheat: drive
Overcurrent between the output phase line and ground: drive
Output voltage overload: Drive
Short circuit protection: Drive
Motor phase break: drive
Dc bus overvoltage: Drive
Line power overvoltage: drive
Bus power undervoltage: Drive
Bus power supply out of phase: drive
Overdrive: drive
Control circuit brake: Drive
Frequency resolution display unit: 0.1Hz
Analog input: 0.012/50 Hz
Electrical connection control, screw terminal: 0.5... 1.5mm ²
Line side, screw terminal: 2 x 95... 3 x 120 mm squared
Motor, Screw Terminal: 2 x 95... 3 x 120 mm squared
Port Type 1 RJ45 (in remote graphics terminal) For Modbus serial
Physical port 2-wire RS485 applicable to Modbus serial
Transmit frame RTU for Modbus serial
Transfer rates 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
Polarization mode with no impedance is applicable to Modbus serial
Address number 1... 247 for Modbus serial
Access method from (station)
Power Supply External power supply for logical input: 24 V DC (19... 30 V), <1.25 mA, protection type: overload and short circuit protection
Internal power supply for reference potentiometers (1 to 10 kOhm): 10.5V DC +/- 5%, <10 mA, protection type: overload and short circuit protection
Local signal indicator 2 LED for Local diagnosis:
1 LED (yellow) for integrated communication status:
2 LED (two-color) for communication module status:
1 LED (red) for voltage state:
Width 300 mm
Height 850 mm
The 1161 mm complies with the IP21 installation kit
Depth 375 mm
Net weight 85.5 kg
Analog input quantity 3
Analog input type AI1, AI2, AI3 Software - Configurable voltage: 0... 10 V DC, impedance: 30 kOhm, resolution 12 bits
AI1, AI2, AI3 software - Configurable current: 0... 20 mA, impedance: 250 Ω, resolution 12 bits
AI2, AI3 software - Temperature detector or water level sensor can be configured
Discrete input quantity 6
Numeric quantity input type DI1... DI6 is programmable as a logic input, 24 V DC (<= 30 V), impedance: 3.5 kOhm
DI5, DI6 can be programmed to pulse input: 0... 30 kHz, 24 V DC (<= 30 V)
Input compatible DI1... DI6: Logic input Level 1 PLC in accordance with EN/IEC 61131-2
DI5, DI6: Pulse input Level 1 PLC in accordance with IEC 65A-68
Discrete quantity input logic Positive logic (source): DI1... DI6 can configure the logical input, < 5 V (status 0), > 11 V
