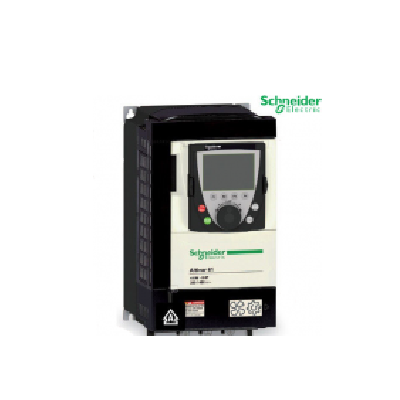

Introduction: ATV61 series inverter built-in Modubs and CANopen protocol, CANopen chrysanthemum chain, Profibus DP, DeviceNet, all coating, adapt to a variety of harsh environment, inverter top provides IP41 protection level.
Product details
200... 240 V three-phase, 0.18 kW to 15 kW (ATV 312... M3)
380... 500 V three-phase, 0.75 kW to 800 kW (ATV 312... N4)
525... 600 V three-phase, 0.75 kW to 15 kW (ATV 312... S6)
Built-in Modubs and CANopen protocols, CANopen Daisy chain, Profibus DP, DeviceNet
New user interface, support for Chinese operation panel
Provides simple and versatile downloaders for easy parameter configuration
Fully coated, suitable for various harsh environments, IP41 protection grade is provided at the top of the inverter;
Detachable terminal modular design, cost saving, easy installation;
The same level * high voltage, the standard voltage fluctuation -15% -- 10%, the allowable voltage drop of 50%;
The M2 and N4 have built-in EMC filters
* Wide operating temperature, -10℃ - +50 ℃ does not drop capacity, * high up to +60 ℃
Super output characteristics, built-in brake unit, overtorque to 170% - 200%
Side-by-side installation to save space;
Advantages:
More communication compatibility, more friendly human-machine interaction;
Rich application functions, excellent adaptability to the environment
Scope of application:
Textile machinery
Printing and packaging machinery
Logistics transportation, automated assembly line, etc
Machine tools, woodworking machinery
Small fan, pump applications
Special machinery (molding machine, construction machine, etc.)
3-phase asynchronous motor (power range 0.75 to 800 kW) inverter for variable torque applications Series Description
3 phase 200/240 V-380/480 V-500/690 V
UL Type 1/IP20, from 0.75 to 800 kW
UL Type 12/IP54, from 0.75 to 800 kW
Speed range: 1:100 in open loop mode
Overload: 110%... 120% - 60 s
Graphical terminal: plain text, navigation buttons, and an "Easy Start" menu that can be started immediately to benefit from all the performance of the ATV61
Integrated Class A or Class B EMC filters
Energy saving method, secondary motor control method
Comply with ** standard and certification: CE, UL, CSA, C-Tick
Integrated Modbus and CANopen
Communication card for industry: Ethernet, FIPIO, Modus Plus, DeviceNet, Interbus-S, Unitelway; Communication cards for construction: LonWorks, BACnet, METASYS N2 and Apogee FLN
Input/output expansion card
Programmable multi-pump card: ATV38 compatibility with new application software
PowerSuite software: Configure, set, and save parameters from applications
Economical design
More than 150 features are available
Protect motor and inverter
Safety feature: "Power off", ATEX
