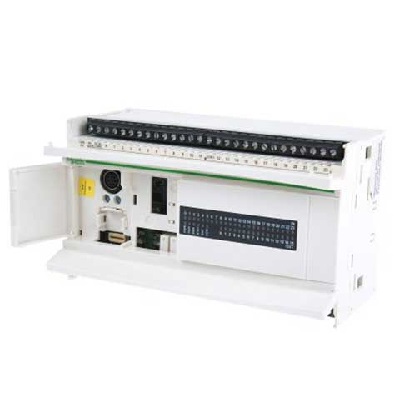

The Twido series of one-body programmable controllers provides users with an "all-in-one "solution in a compact structure (total size 80/157*90*70mm). There are eight single-body controllers available, which differ in terms of processing power and DC 24V inputs and the number of relays and transistor outputs (10, 16, 24 or 40 I/ OS). These body controllers use either a 100-240 AC power supply (which can output 24VDC and provide 24VDC power to the sensor), or a 19.2-30V DC power supply (which must provide an external auxiliary power supply to the sensor).
Product characteristics
●Twido body type
> A body is connected with screw terminals
> 10 kinds of ontology, respectively 10 points or 16 points, 24 points and 40 points four types, of which 6 kinds of ontology can be expanded by 4 to 7 digital or analog modules, and can also add display interface, real-time clock card or storage card
> Power Supply: 24VDC, 100... 240 VAC
> Communication protocols: Modbus, CANopen, Ethernet (two 40-point one-body ontology built in)
●Twido module type
> Smaller size (95 x 90 x 70 mm for the 40-point body) with pluggable screw terminals or HE10 connectors
> 5 kinds of one-body body, respectively 20 points, 40 points two types, respectively, can expand 4 to 7 digital or analog modules, can also add display interface, real-time clock card or memory card
> Power Supply: 24VDC, 100... 240 VAC
> Communication protocol: Modbus, CANopen, Ethernet
●Twido Extreme
> Safety level: IP67, temperature range: -40°to+110°C
> Non-expandable ontology, 41I/O (digital, analog and PWM output)
> Power Supply: 12or24VDC
> Communication protocols: Modbus, CANopen, CAN J1939 are all integrated internally
advantage
Simple and exquisite
● Flexible configuration, compact structure, powerful functions, rich communication methods, CPU Firmware can be continuously upgraded
Scope of application
● Simple independent installation occasions: lighting management, HVAC, simple control and monitoring
● Repeated operation of integrated models: logistics delivery, lifting, vending machines, etc
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
