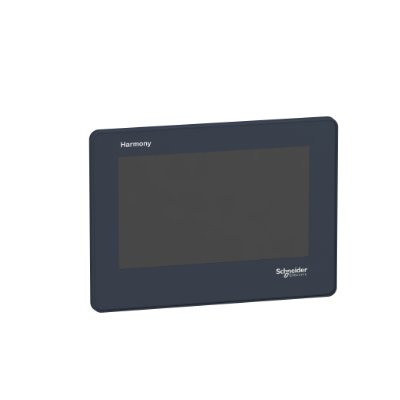

Description: Schneider/ Schneider Harmony STO & STU Series Touch Screen HMISTO735 4.3 "touch screen Ethernet Harmony operating system, two quick installation methods, installed in 1.5 to 6 mm thick panel.
Product details
Monitor size: 4.3 inches
Display type: Color TFT LCD
Display color: 65536 colors
Monitor resolution: 480 x 272 pixels
Touch screen: analog volume
Backlight life: 50,000 hours with white
Brightness: Level 16 through touch screen
Rated supply voltage [Us] : 12... 24 V DC - 10… 20%
Power consumption W: 8.1 W
Ethernet port: 10BASE-T/100BASE-TX
Integrated connection type:
1 USB 2.0 mini Type B
1 USB 2.0 A
1 Ethernet TCP/IP - RJ45
Power supply: external (source)
Real-time clock: The RTC battery module is optional
Fixed mode: Two quick mounting methods, mounted on 1.5 to 6 mm thick panel
Cabinet materials: PPT
Front plate material: plastic
Opening size:
77.5 x 112.5 mm
66 x 105 mm and mounting identifier
Product net weight: 0.22kg
Operating temperature: 0... 50 °C
Storage ambient temperature: -20... 60 °C
Relative humidity: 10... 90 % without condensation
Working altitude: 2000 m
IP protection level:
IP65f (Front panel)
IP20 (rear plate)
NEMA Protection Class: NEMA 4X/13 Front Panel (for indoor use)
Shock resistance: 15 gn for 11 ms conforming to IEC 61131-2
