Brief introduction: XB2 series buttons are suitable for AC 50Hz-60Hz, rated working voltage to 380V and DC working voltage of 220V industrial control circuit, as magnetic starter, contactor, relay and other electrical circuit control, with the lamp button is also suitable for the occasion of light signal indication products in line with GB14048.5-1993 standard.
Product parameter

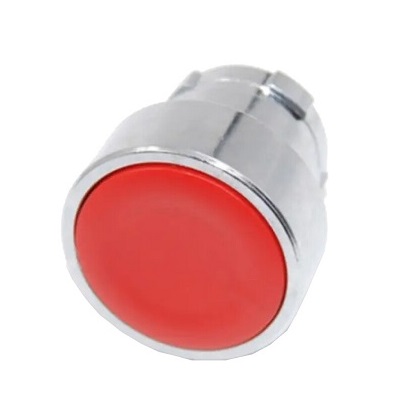

Model: ZB2-BA4C
Head shape: round
Contact type: 1NO
Color: Red
Background light color: None
Rated voltage: below 380V
Agreed heating current: 10
Operation structure: automatic reset
Installation size: 22MM
Rated insulation voltage Ui 660V
The prescribed heating current is 10A
The ambient temperature is -5℃ -- +40℃
Ambient relative humidity 45%-85% (no frost and dew)
Working voltage 2500V AC, 1 minute
Contact resistance ≤5mΩ(initial value)
Mechanical life transient type 1 million times other 250,000 times
Electrical life of 500,000 times (at 1200 times/hour, 40% load rate)
Protection level IP40(button box IP65)
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
