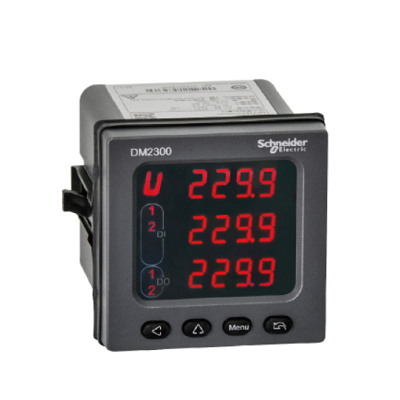

Introduction: DM2355 parameter measuring instrument has the features of simple function, small size, intuitive and easy to read, simple operation, easy installation, etc., suitable for various industries of ordering system detection and power management measurement.
Product parameter
Product name DM2355
Product Type Power meter
Pole number 3P + N /3P
Type of measurement
Electric current
Power factor
voltage
Active and reactive capacity
Active power and reactive power
frequency
Rated supply voltage [Us]
85... 265 V DC
85... 265 V AC
Power grid frequency 50Hz
Power consumption VA<5VA
Display type LED
Measured voltage
0 V... 35 kV AC with external VT
25... 450 V AC phase line to phase line
Input quantity 2 Digital
Output quantity 1 Digital
Analog Input Type Current 0... 5A
Measuring current 50mA... 6A
Measurement accuracy
0.3% voltage
0.3% current
0.5% active power
0.5% power factor
0.5% active power
Communication protocol Modbus 1200... 9600 bit/s two lines
Communication interface RS485
Installation method Hidden installation
Mounting mode panel
Installation type indoor
Electromagnetic compatibility
Surge Discharge Anti-jamming III GB/T 17626.5 2008
Anti-fast transient pulse group III GB/T 17626.4 2008
Electrostatic Discharge Anti-interference III GB/T 17626.2 2006
IP protection level
IP20 shell
IP40 front panel
Relative humidity 5... 95%
Operating temperature -20... 60 °C
Storage ambient temperature -20... 70 °C
Width 72 mm
Height 72 mm
Depth 77.3 mm
