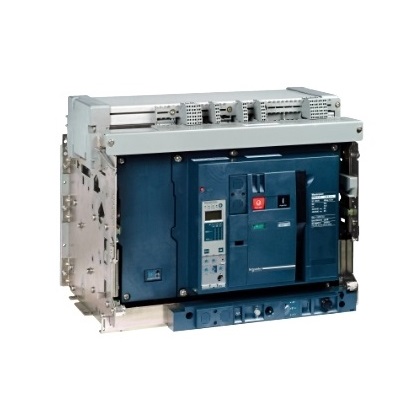

Masterpact NW-DC belongs to PacT Series 1000-4000A high current DC air circuit breaker products, same shape size and general accessories as Masterpact MT drawer AC ACB, special DC trip unit.
Product details
The product range is MasterPact NW
Product type ontology
Product short name MasterPact NW10HDC-C
Circuit breaker name MasterPact NW10HDC-C
Pole number 3P
Network type DC
Breaker model H
Isolation function is applicable in accordance with IEC 60947-2
Use Category B
Supplementary information Control Type (press type) button
Installation type Drawer type
Rated current [In]1000 A in... Up 40 degrees Celsius
The rated insulation voltage [Ui] is 1000 V DC in accordance with IEC 60947-2
The rated impulse withstand voltage [Uimp] is 12 kV in accordance with IEC 60947-2
Rated operating voltage [Ue]500/900 V DC in accordance with IEC 60947-2
The transformer is rated 1000 A
Protection Type None
Mechanical life 10000 times do not maintain comply with IEC 60947-2
20000 maintenance in accordance with IEC 60947-2
Electrical life 8500 times 500 V DC does not maintain comply with IEC 60947-2
2000 times 900 V DC maintenance does not comply with IEC 60947-2
Phase spacing 115 mm
The rated short-time tolerable current [Icw]85 kA 1 s conforms to IEC 60947-2
Break time 30... 75 ms
Maximum closing response time70 ms
The height is 439 mm
The width is 556 mm
The depth is 394.5 mm
The environment complies with IEC 60947-2
Product certification ASTA
ASEFA
Pollution level 4 complies with IEC 60664-1
Operating temperature -25... 70 °C
Storage ambient temperature -40... 85 °C
