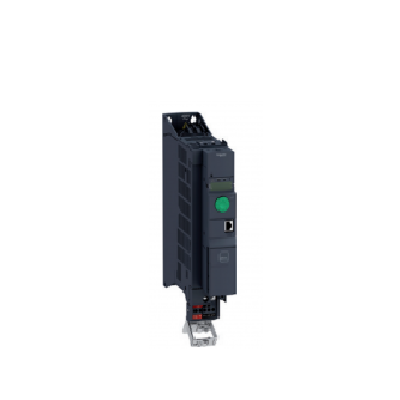

The ATV320 follows Schneider's tradition of drive durability and reliability and is capable of continuous operation in the highest temperatures, harsh environments with chemical gases or mechanical dust. Operating ambient temperature ** up to 60 "C, in accordance with IEC standards 3C3 and 3S2. With more than 150 features, the ATV320 can be configured, controlled and diagnosed using the same software block (DTM) directly in SoMachine and SoMove software with FDT/DTM technology.
Product parameter
Product series ATV320
Product Type Frequency converter
Applications Complex machines
Product name ATV320
Drive format book
Product function asynchronous motor
Synchronous motor
EMC Filter Class C2 EMC filter
The IP protection level IP20 complies with EN/IEC 61800-5-1
Cooling fan
The number of grid phases is 1 phase
Rated supply voltage [Us] 200... 240 V (- 15... 10%)
Power supply frequency 50... 60 Hz (- 5... 5%)
Motor power (kW) 1.5kW for heavy loads
Motor power 2 hp for heavy duty
Line current 17.6A at 200 V for heavy loads
14.8A is suitable for heavy loads at 240 V
Expected line Isc <= 1 kA
The apparent power of 3.6 kVA is suitable for heavy duty at 240 V
Continuous output current 8 A at 4 kHz for heavy loads
* Large transient current 12 A in... Between 60 s for heavy loads
Asynchronous motor control profile Voltage/frequency ratio, 2 points
Voltage/frequency ratio, 5 points
Standard for sensorless flux vector control
Voltage/frequency ratio
Sensorless flux control - Energy saving
Synchronous motor control configuration mode sensorless vector control
Inverter output frequency 0.1... 599 Hz
Rated switching frequency 4 kHz
Switching frequency 4... 16 kHz current derated
2... 16 kHz adjustable
Safety Features STO(Safe Torque Interrupt) SIL 3
SS1 (Safe Stop 1)
* High safety speed
SLS (Safe Speed Limit)
Anti-theft lock
Communication protocol
CANopen
Modbus
Output voltage <= power supply voltage
Temporary enhanced current of 1.5 x In... Between 60 s for heavy loads
Velocity range 1... 100 and asynchronous motor in open-loop mode
Speed accuracy +/- 10% nominal slip 0.2Tn to Tn
Torque accuracy +/- 15%
Instantaneous overtorque 170... 200% nominal motor torque
Braking torque < 170% with brake resistor at... Between 60 s
PID regulator with adjustable control loop
Width 60 mm
Height 325 mm
Depth 245 mm
Product weight 2.9kg
