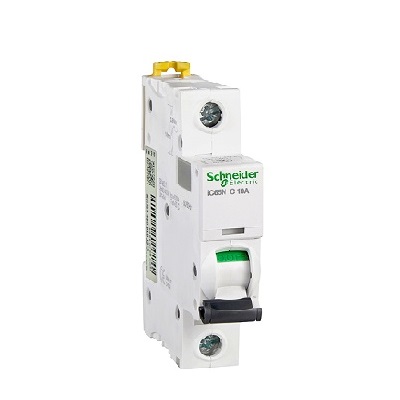

IC65N 1P C10A micro circuit breaker is suitable for overload and short circuit protection of AC 50/60Hz rated voltage 230/400V, rated current up to 63A lines. It can also be used for infrequent conversion of lines under normal conditions. Small circuit breakers are mainly used in industrial, commercial, high-rise and residential and other places.
Product details
Product line Acti 9
Product name IC65
Product type Miniature circuit breaker
Product short name iC65N
The pole number is 1P
The product applies to power distribution protection
The number of protectors is 1
Rated current [In] 10 A Up 30 degrees Celsius
Network type AC
Release type thermal-magnetic
Trip curve C
Breaking capacity 36 kA Icu in... Top 12... The 60 V AC 50/60 Hz complies with IEC 60947-2
20 kA Icu in... Up to 100... 133 V AC 50/60 Hz in accordance with IEC 60947-2
10 kA Icu in... Upper 220... The 240 V AC 50/60 Hz complies with IEC 60947-2
6000 A Icn in... The upper 230 V AC 50/60 Hz conforms to IEC 60898-1
Usage Type The AC class complies with IEC 60947-2
Isolation function is applicable in accordance with IEC 60947-2
Supplementary information
The network frequency is 50/60 Hz
Rated operating voltage [Ue] 230/400 V AC 50/60 Hz
Magnetic trip limit 5... 10 x In
Current limiting level 3 complies with IEC 60898-1
The rated insulation voltage [Ui] is 500 V AC 50/60 Hz in accordance with IEC 60947-2
The rated impulse withstand voltage [Uimp] 6 kV conforms to IEC 60947-2
Contact position is indicated
Control type handle
Local signal indication on/off indication
Installation Type Locking clip locks
Installation method DIN rail installation
Width (multiple of 9mm) 2
Height 94mm
The depth is 78.5mm
The net weight of the product is 103 g
Mechanical life 20000 times
Electrical life 10000 times
Connection capability Tunnel terminal upper connection or lower connection 1... Fast loading of a 25 mm² single hard cable does not contain a terminal
Tunnel type terminal upper connection or lower connection 1... Fast loading (optional) 16 mm² flexible cables or no fast loading terminals
Strip length 14 mm power circuit:
Fastening torque 2.5N.m power supply circuit:
