Technical data

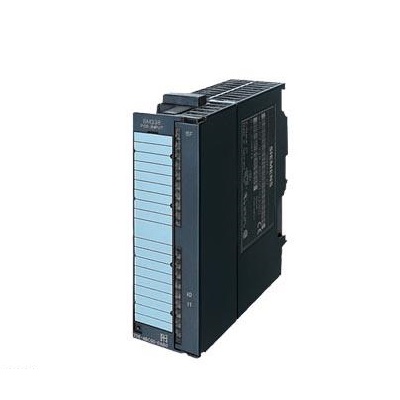

SIMATIC S7-300, signal module for 3 SSI encoders for reading position values, with 2 FREEZE input terminals, 1x 20 pole supports clock synchronization
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 20.4V
● Allowable range, upper limit (DC) 28.8V
Input current
Voltage from load L+ (no load), maximum 100 mA
From the backplane bus DC 5 V, maximum 160 mA
Sensor power supply
24 V sensor power supply
● 24 V is; L+ (-0.8V)
● Output current, maximum 900 mA
Power loss
Power loss, typical value 3 W
Digital input
Input voltage
● For signal "0" -3 to +5V
● For signal "1" 11 to 30.2V
Input current
● For signal "0", maximum (allowed closed circuit current) 2 mA
● For signal "1", typical value 9 mA
Input delay (when input voltage is rated)
For standard input
- When the value ranges from 0 to 1, the minimum value is 300 µs
Conductor length
● Shielding, maximum 600 m
sensor
Number of connected sensors, Max. 3
Connectable sensor
● Absolute encoder (SSI) Yes
● Double wire sensor is
Sensor signal, absolute encoder (SSI)
● Shielding wire length, maximum 320 m; 320 m at 125 kHz; 160 m at 250 kHz; 60 m at 500 kHz and 20 m at 1 MHz
Alarm/diagnosis/status information
alarm
● Diagnostic alarm Yes
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 235 g
