Technical data

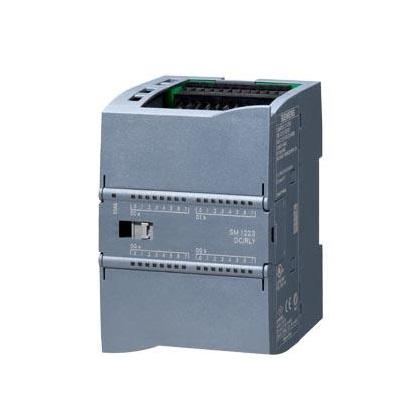

SIMATIC S7-1200, Digital quantity I/O SM 1223,16 DI/16DO, 16DI 24V DC, feed current/pull current, 16DO, Relay 2A
General information
Product Type Logo SM 1223, DI 16x24 VDC, DQ 16x Relay
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
From the backplane bus DC 5 V, maximum 180 mA
Digital input terminal
● From load voltage L+ (no load), maximum 4 mA/input terminal 11 mA/relay
Output voltage/heading
Measure the supply voltage/title of the converter
● Product function/measurement inverter power supply voltage is
Power loss
Power loss, typical value 10 W
Digital input
Number Number of input terminals 16
● In the component 2
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
All mounting positions
- The maximum is 40 ℃ and the maximum is 16 ℃
Horizontal mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
- The maximum is 50 ℃, and the maximum is 16 ℃
Vertical mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● DC 5 V for signal "0" 1 mA
● For signal "1" 15 V DC, when is 2.5 mA
Input current
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", minimum value 2.5mA
● For signal "1", the typical value is 4 mA
Input delay (when input voltage is rated)
For standard input
- Parameterizable Yes; You can choose from four groups: 0.2ms, 0.4ms, 0.8ms, 1.6ms, 3.2ms, 6.4ms and 12.8ms
For alarm input
- Parameterizable Yes
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 300 m
Digital output
Number of output terminals 16
● In the component 4
Short circuit protection No; External presets
Output on-off capability
● The maximum value of resistance load is 2 A
● The maximum value of lighting load is 30 W for DC and 200 W for AC
Output voltage
● Rating (DC) 5 V DC to 30 V DC
● Rating (AC) 5 to 250 V AC
Output current
● For signal "1" rating 2 A
● For the allowable range of signal "1", the maximum is 2 A
The output delay when the resistance is loaded
● From "0" to "1", Max. 10 ms
● From "1" to "0", Max. 10 ms
Total current at output (per group)
Horizontal mounting position
-- Up to 50 ℃, maximum 8 A; The current of each neutral line
Relay output terminal
● The number of relay outputs is 16
● Relay coil L+ (DC) power supply voltage 24 V
● The maximum number of operating cycles when the load rated voltage is 100000, the mechanical current is 10 million
The on-off capacity of the contact
- The maximum value when the inductor is loaded is 2 A
- The maximum lighting load is 30 W for DC and 200 W for AC
- The maximum value when the resistance is loaded is 2 A
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
Alarm/diagnosis/status information
alarm
● Diagnostic alarm Yes
Diagnostic display LED
● For input side status is
● For output end status is
Potential isolation
Digital input potential isolation
● Between channels, group the number of points 2
Digital output potential isolation
● Relay between channels
● Between channels, group the number of points 4
● 1500 V AC for 1 minute between channel and backplane bus
The allowable potential difference
750 V AC between different circuits for 1 minute
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
The CSA license is
UL license is
cULus is
FM license is
RCM (formerly C-TICK) is
KC license is
The ship construction permit is
Environmental requirements
In the open
● Maximum drop 0.3m; Five, in the shipping package
Operating ambient temperature
● Minimum value -20 °C
● Maximum value 60 °C; Number of outputs connected at the same time: 8 (no adjacent connectors), 60 °C horizontal or 50 °C vertical, 16, 55 °C horizontal or 45 °C vertical
● Horizontal installation, minimum value -20 °C
● Horizontal installation, maximum 60 °C
● Vertical installation, minimum value -20 °C
● Vertical installation, maximum 50 °C
● Allow temperature variation from 5°C to 55°C, 3°C/ min
Ambient temperature during transportation/storage
● Minimum value -40 °C
● Maximum 70 °C
Air pressure meets IEC 60068-2-13 standard
● Storage/transportation, minimum 660 hPa
● Storage/transportation, maximum 1 080 hPa
Relative air humidity
● No condensation operation at 25 °C, maximum 95%
Connect technology/title
The required front plug is
Machinery/materials
Shell material (front)
● Plastic is
dimension
Width 70 mm
Height 100 mm
Depth 75mm
weight
Weight, about 350 g
