Technical data

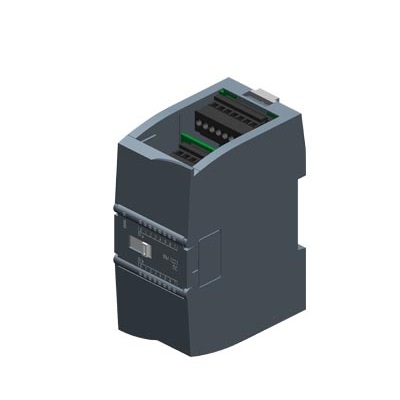

SIMATIC S7-1200, digital input SM 1221,16 digital input, 24V DC, perfusion current/pull current
General information
Product Type Label SM 1221, DI 16x24 VDC
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
From the backplane bus DC 5 V, Max 130 mA
Digital input terminal
● From the load voltage L+ (no load), maximum 4 mA; Each channel
Output voltage/heading
Measure the supply voltage/title of the converter
● Product function/measurement inverter power supply voltage is
Power loss
Power loss, typical value 2.5W
Digital input
Number Number of input terminals 16
● In the component 4
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
All mounting positions
- The maximum is 40 ℃ and the maximum is 16 ℃
Horizontal mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
- The maximum is 50 ℃, and the maximum is 16 ℃
Vertical mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
Input voltage
● Rating (DC) 24 V
● DC 5 V for signal "0" 1 mA
● For signal "1" 15 V DC, when is 2.5 mA
Input current
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", minimum value 2.5mA
● For signal "1", the typical value is 4 mA
Input delay (when input voltage is rated)
For standard input
- Parameterizable Yes; You can choose from four groups: 0.2ms, 0.4ms, 0.8ms, 1.6ms, 3.2ms, 6.4ms and 12.8ms
For alarm input
- Parameterizable Yes
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 300 m
Alarm/diagnosis/status information
alarm
● Diagnostic alarm Yes
Diagnostic display LED
● For input side status is
Potential isolation
Digital input potential isolation
● Between channels, group the number of points 4
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
The CSA license is
UL license is
cULus is
FM license is
RCM (formerly C-TICK) is
KC license is
The ship construction permit is
Environmental requirements
In the open
● Maximum drop 0.3m; Five, in the shipping package
Operating ambient temperature
● Minimum value -20 °C
● Maximum 60 °C
● Allow temperature variation from 5°C to 55°C, 3°C/ min
Ambient temperature during transportation/storage
● Minimum value -40 °C
● Maximum 70 °C
Air pressure meets IEC 60068-2-13 standard
● Storage/transportation, minimum 660 hPa
● Storage/transportation, maximum 1 080 hPa
Relative air humidity
● No condensation operation at 25 °C, maximum 95%
Connect technology/title
The required front plug is
Machinery/materials
Shell material (front)
● Plastic is
dimension
Width 45 mm
Height 100 mm
Depth 75mm
weight
Weight, about 210 g
