Technical data

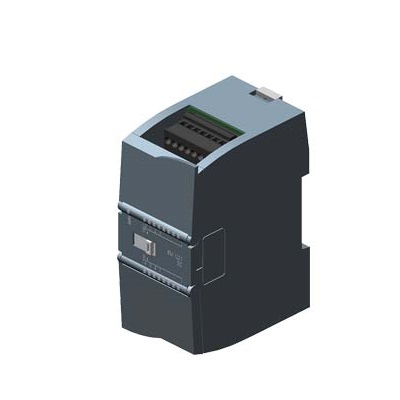

SIMATIC S7-1200, digital input SM 1221,8 DI, 24V DC, perfusion current/pull current
General information
Product Type Label SM 1221, DI 8x24 VDC
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
From the backplane bus DC 5 V, maximum 105 mA
Digital input terminal
● From the load voltage L+ (no load), maximum 4 mA; Each channel
Output voltage/heading
Measure the supply voltage/title of the converter
● Product function/measurement inverter power supply voltage is
Power loss
Power loss, typical value 1.5 W
Digital input
Number of input terminals 8
● In the component 2
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
All mounting positions
- The maximum value is 40 ℃ and the maximum value is 8 ℃
Horizontal mounting position
- The maximum value is 40 ℃ and the maximum value is 8 ℃
- The maximum value is 50 ℃ and the maximum value is 8 ℃
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 8 ℃
Input voltage
● Rating (DC) 24 V
● DC 5 V for signal "0" 1 mA
● For signal "1" 15 V DC, when is 2.5 mA
Input current
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", minimum value 2.5mA
● For signal "1", the typical value is 4 mA
Input delay (when input voltage is rated)
For standard input
- Parameterizable Yes; You can choose from four groups: 0.2ms, 0.4ms, 0.8ms, 1.6ms, 3.2ms, 6.4ms and 12.8ms
For alarm input
- Parameterizable Yes
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 300 m
Alarm/diagnosis/status information
alarm
● Diagnostic alarm Yes
Diagnostic display LED
● For input side status is
Potential isolation
Digital input potential isolation
● Between channels, group the number of points 2
Protection level and protection category
Protection level IP Address IP20
