Technical data

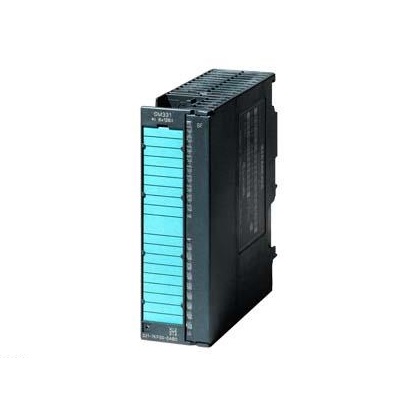

SIMATIC S7-300, analog output SM 332, potential isolation, 2AA, U/I; Resolution 11/12 bit, 20 pin, plug/plug using activated backplane bus is feasible
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Input current
Voltage from load L+ (no load), maximum 135 mA
From the backplane bus DC 5 V, Max 60 mA
Power loss
Power loss, typical value 3 W
Analog output
The number of analog outputs is 2
Voltage output, short circuit protection is
Voltage output, short circuit current, Max. 25 mA
Current output, no load voltage, maximum 18 V
Output range, voltage
● 0 to 10 V is
● 1 V to 5 V Yes
● -10 V to +10 V Yes
Output range, current
● 0 to 20 mA Yes
● -20 mA to +20 mA Yes
● 4 mA to 20 mA Yes
Load resistance (in rated output range)
● Minimum voltage output 1 kΩ
● Capacitance load at the voltage output, maximum 1 µF
● The maximum value of current output is 500 Ω
● Current output inductive load, maximum 10 mH
Conductor length
● Shielding, maximum 200 m
Composition of analog values at the output end
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 12 bits; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11-bit + symbol; 0 V to 10 V, 0 mA to 20 mA: 12 bits
● Conversion time (per channel) 0.8ms
Starting time
● For resistance load 0.2ms
● For capacitive load 3.3ms
● For inductive load 0.5ms; 0.5 ms (1 mH); 3.3ms (10mH)
Error/accuracy
Operating error limits throughout the temperature range
● Voltage, related to output range, (+/-) 0.5 %
● Current, related to output range, (+/-) 0.6 %
Basic error limit (operating error limit at 25 °C)
● Voltage, related to output range, (+/-) 0.4 %
● Current, related to output range, (+/-) 0.5 %
Alarm/diagnosis/status information
The diagnostic function is; parameterizable
alarm
● Diagnostic alarm yes; parameterizable
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Cumulative failure SF (red) is
Potential isolation
Simulated output potential isolation
● Between channels no
● Between the channel and the backplane bus
● Between the channel and the load voltage L+
● Between the channel and the supply voltage of the electronic component
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 117 mm
weight
Weight, about 220 g
