Technical data

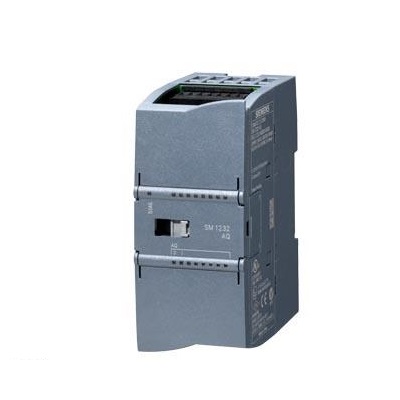

SIMATIC S7-1200, analog output, SM 1232,2 AO, +/-10V, 14-bit resolution, or 0-20mA/4-20mA, 13-bit resolution
General information
Product type logo SM 1232, AO 2x14 bit
Supply voltage
Rating (DC) 24 V
Input current
Consumption current, typical value 45 mA
From the backplane bus DC 5 V, typical value 80 mA
Power loss
Power loss, typical value 1.5 W
Analog output
The number of analog output terminals is 2; Current or voltage
Output range, voltage
● -10 V to +10 V Yes
Output range, current
● 0 to 20 mA Yes
Load resistance (in rated output range)
● Minimum voltage output 1 000 Ω
● Current output maximum 600Ω
Conductor length
● Shielding, maximum 100 m; Shield twisted pair cables
Composition of analog values at the output end
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 14 bits; Voltage: 14 bits, current: 13 bits
Error/accuracy
Temperature error (related to output range), (+/-) 25 °C ±0.3%, to 55 °C ±0.6% full measurement range
Basic error limit (operating error limit at 25 °C)
● Voltage, related to output range, (+/-) 0.3 %
● Current, related to output range, (+/-) 0.3 %
Fault voltage suppression f = n x (f1 +/- 1 %), f1 = interference frequency
● Parallel voltage, maximum 12 V
Alarm/diagnosis/status information
Alarm is
The diagnostic function is
alarm
● Diagnostic alarm Yes
diagnosis
● Power supply voltage monitoring is
● The broken line is
● Short circuit is
Diagnostic display LED
● For output end status is
● For maintenance is
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
The CSA license is
UL license is
cULus is
FM license is
RCM (formerly C-TICK) is
KC license is
The ship construction permit is
Environmental requirements
In the open
● Maximum drop 0.3m; Five, in the shipping package
Operating ambient temperature
● Minimum value -20 °C
● Maximum 60 °C
● Horizontal installation, minimum value -20 °C
● Horizontal installation, maximum 60 °C
● Vertical installation, minimum value -20 °C
● Vertical installation, maximum 50 °C
Ambient temperature during transportation/storage
● Minimum value -40 °C
● Maximum 70 °C
Air pressure meets IEC 60068-2-13 standard
● Operation, minimum 795 hPa
● Operation, maximum 1 080 hPa
● Storage/transportation, minimum 660 hPa
● Storage/transportation, maximum 1 080 hPa
Relative air humidity
● No condensation operation at 25 °C, maximum 95%
Concentration of hazardous substances
● RH < 60% SO2, no condensation sulfur dioxide: < 0.5ppm; Hydrogen sulfide: < 0.1ppm; RH < 60% no condensation
Connect technology/title
The required front plug is
Machinery/materials
Shell material (front)
● Plastic is
dimension
Width 45 mm
Height 100 mm
Depth 75mm
weight
Weight, about 180 g
