Technical data

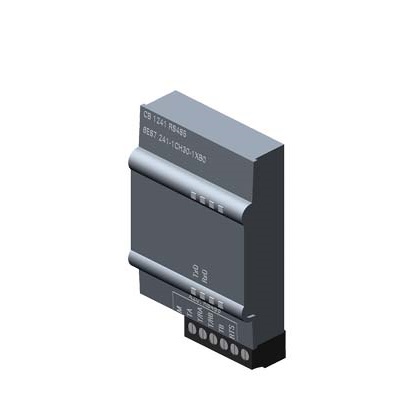

SIMATIC S7-1200, Communication Board CB 1241, RS-485,
terminal box, free port supported
General information
Product type Mark CB 1241 RS 485
Input current
From the backplane bus DC 5 V, typical value 50 mA
Power loss
Power loss, typical value 1.5 W
interface
Point-to-point connection
● Conductor length, maximum 1 000 m
Integrated protocol driver
- Free port Yes
- ASCII Yes; Available as a library function
- The primary Modbus RTU station is
- Modbus RTU Secondary station Yes
- USS Yes; Available as a library function
agreement
Integration protocol
Free port
- Packet length. The maximum value is 1 kbyte
- Each character contains 7 or 8 bits
- Number of stop bits: 1 (standard), 2
- Parity check (standard by default) None Parity check. Positive, odd, and tag (the parity bit is always 1); Blank (parity bit is always 0)
3964 (R)
- Packet length. The maximum value is 1 kbyte
- Each character contains 7 or 8 bits
- Number of stop bits: 1 (standard), 2
- Parity check (standard by default) None Parity check. Positive, odd, and tag (the parity bit is always 1); Blank (parity bit is always 0)
Primary Modbus RTU station
- Address range 1 to 49 999 (Standard Modbus addressing)
-- Number of slave stations, maximum 247; There are up to 32 devices per MODBUS network segment from station number 1 to 247, and more Repeaters are needed to scale the network to the maximum configuration
Modbus RTU Secondary station
- Address range 1 to 49 999 (Standard Modbus addressing)
Alarm/diagnosis/status information
The diagnostic function is
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
The CSA license is
UL license is
cULus is
FM license is
RCM (formerly C-TICK) is
KC license is
The ship construction permit is
Environmental requirements
In the open
● Maximum drop 0.3m; Five, in the shipping package
Operating ambient temperature
● Minimum value -20 °C
● Maximum 60 °C
● Horizontal installation, minimum value -20 °C
● Horizontal installation, maximum 60 °C
● Vertical installation, minimum value -20 °C
● Vertical installation, maximum 50 °C
● Allow temperature variation from 5°C to 55°C, 3°C/ min
Ambient temperature during transportation/storage
● Minimum value -40 °C
● Maximum 70 °C
Air pressure meets IEC 60068-2-13 standard
● Operation, minimum 795 hPa
● Operation, maximum 1 080 hPa
● Storage/transportation, minimum 660 hPa
● Storage/transportation, maximum 1 080 hPa
Relative air humidity
● No condensation operation at 25 °C, maximum 95%
dimension
Width 38 mm
Height 62 mm
Depth 21 mm
weight
Weight, about 40 g
