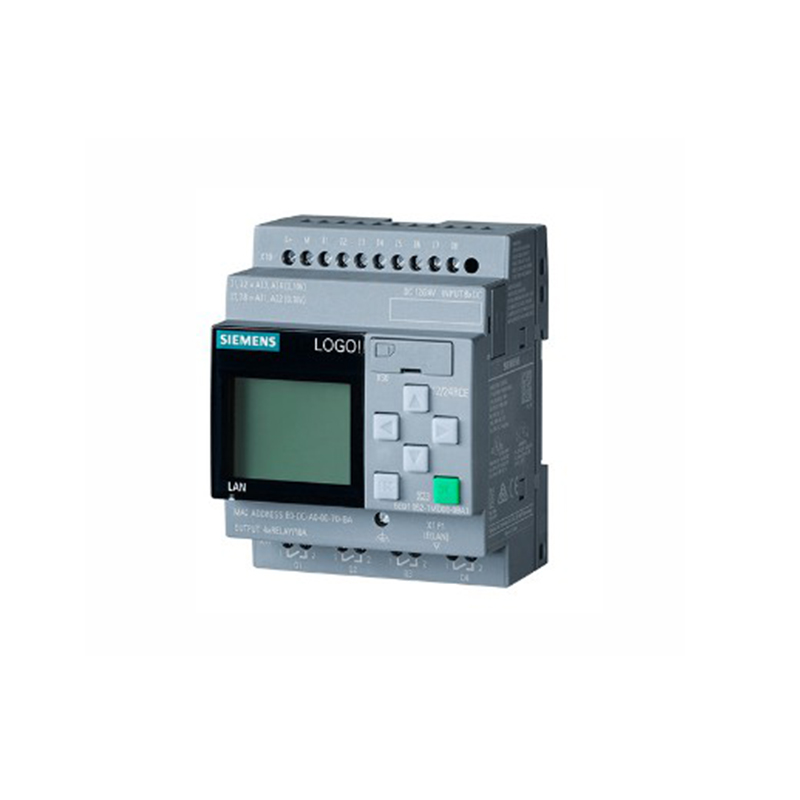

SIEMENS 6ED1052-1MD08-0BA2 LOGO! 8.4 PLC Programmable Controller
LOGO！12/24RCE， Logic module, Disp SV/I/O: 12/DC 24V/relay, 8 digital inputs (4 analog inputs)/4 digital outputs, 400 blocks of memory, modular expandable, Ethernet, integrated network server, data recording, data definition, standard microSD card, similar to logo! Soft Comfort V8.3 and above, can run older projects, cloud connectivity, and MQTT on all logos! 8.4 Basic equipment
Display
The screen with display is
Installation method/installation
Installed on a 35 mm hat shaped track with 4 component unit widths
supply voltage
Rated value (DC)
DC 12 V is
DC 24 V is
Permissible range, lower limit (DC) 10.8 V
Permissible range, upper limit (DC) 28.8 V
time
timer
● Quantity 400; Up to 400, depending on function
● Backup power supply 480 hours
Digital input
Number of digital input terminals 8; Four of them can be simulated (0 to 10 V)
Digital output
4 digital output terminals; relay
Short circuit protection is not available; External safety device required
Output current
● The allowable range for signal "1" is 0 ° C to 55 ° C, with a maximum value of 10 A
Relay output terminal
On/off energy of contacts
- Maximum value of 3 A under inductive load
- Maximum value of 10 A under resistive load
Environmental requirements
Environmental temperature during operation
● Maximum temperature -20 ° C; Water condensation
● Maximum temperature of 55 ° C
Environmental temperature during transportation/storage
● Maximum temperature -40 ° C
● Maximum temperature of 70 ° C
The operational level of the reference sea level
Environmental temperature - pressure - installation temperature 1 080 hPa Tmin at 795 hPa Tmax (-1000 m+ 2000 m)
Foot length
Width 71.5 mm
Height 90 mm
Depth of 60 mm
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
