Technical data

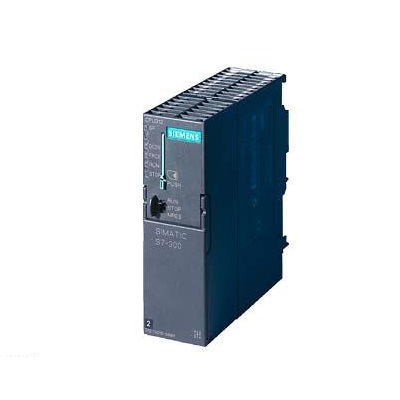

SIMATIC S7-300, CPU 317-2 DP, central processing unit, with 1MB main memory, 1 MPI/DP 12MBit/s interface, 2 DP-Master/Slave interface, need micro memory card
General information
Hardware function status 01
Firmware version V3.3
packaged
● Engineering system STEP 7 V5.5 and above + SP1 or STEP 7 V5.2 and above + SP1 with HSP 202
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
External safety device of power conductor (recommended) minimum 2 A
The power supply and voltage break are bonded
● Blackout/blackout crossover time 5 ms
● Repetition rate, minimum value 1 s
Input current
Consumption current (rated) 870 mA
Consumption current (no load), typical value 120 mA
On current, typical value 4 A
I squared t 1 A squared times s
Power loss
Power loss, typical value 4.5 W
memory
Working memory
● Integrated 1 024 kbyte
● Expandable No
Loading storage
● Plug-in type (MMC) Yes
● Pluggable (MMC), Max. 8 Mbyte
● Data management on MMC (after last programming), minimum 10 a
buffering
● Existence is; Guarantee via MMC (maintenance free)
● Without batteries is; Program and data
CPU- Processing time
For bit operations, the typical value is 0.025 µs
For word operations, the typical value is 0.03 µs
For fixed-point operations, the typical value is 0.04 µs
For floating-point arithmetic, the typical value is 0.16 µs
dimension
Width 40mm
Height 125 mm
Depth 130mm
weight
Weight, about 360 g
