Technical data

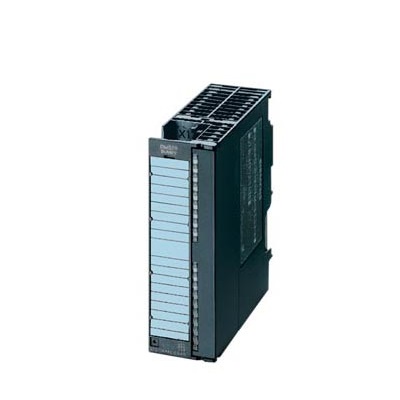

SIMATIC S7-300, Digital Module SM 323, Potential Isolated, 16 DE and 16 DA, 24V DC, 0.5A, Total Current 4A, 1 40 pins
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 20.4V
● Allowable range, upper limit (DC) 28.8V
Input current
Voltage from load L+ (no load), maximum 80 mA
From the backplane bus DC 5 V, Max 80 mA
Power loss
Power loss, typical value 6.5 W
Digital input
Number Number of input terminals 16
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
- The maximum value is 60 ℃ and the maximum value is 8 ℃
Vertical mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" -30 to +5 V
● For signal "1" 13 to 30V
Input current
● For signal "1", the typical value is 7 mA
Input delay (when input voltage is rated)
For standard input
- When the value ranges from 0 to 1, the minimum value is 1.2 ms
- When the value ranges from 0 to 1, the maximum value is 4.8 ms
- When the value ranges from 1 to 0, the minimum value is 1.2 ms
- When the value ranges from 1 to 0, the maximum value is 4.8 ms
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Digital output
Number of output terminals 16
Short circuit protection is
● Response threshold, typical value 1 A
Limit of induction shut-off voltage L+ (-48 V)
Control digit input is
Output on-off capability
● The maximum value of lighting load is 5 W
Load resistance range
● Lower limit 48 Ω
● Maximum 4 kΩ
Output voltage
● For signal "1", minimum L+ (-0.8V)
Output current
● 0.5 A rating for signal "1"
● For the allowable range of signal "1", minimum value 5 mA
● For the allowable range of signal "1", the maximum value is 0.6A
● Minimum load current 5 mA for signal "1"
● For the residual current of signal "0", the maximum is 0.5mA
The output delay when the resistance is loaded
● From "0" to "1", up to 100 µs
● From "1" to "0", up to 500 µs
The two outputs are in parallel
● Used to increase power No
● For redundancy control load is; Only the same group output
Switching frequency
● The maximum value of resistance under load is 100 Hz
● The maximum value of inductive load is 0.5Hz
● The maximum value of lighting load is 100 Hz
Total current at output (per group)
Horizontal mounting position
- The maximum temperature is 40 ℃, and the maximum value is 4 A
- The maximum is 60 ℃ and the maximum is 3 A
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 2 A
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
sensor
Connectable sensor
● Double wire sensor is
- The maximum allowable closed-circuit current (for a dual-wire sensor) is 1.5 mA
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
Diagnostic display LED
● Digital input status display (green) Yes
● Digital output status display (green) Yes
Potential isolation
Digital input potential isolation
● Between the channels yes
● Between channels, group the number of points 16
● Between the channel and backplane bus is; Photoelectric coupler
Digital output potential isolation
● Between the channels yes
● Between channels, group the number of points 8
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug 40 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 260 g
