Technical data

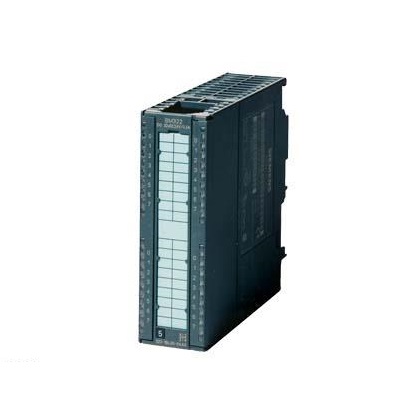

SIMATIC S7-300, Digital Output SM 322, Potential isolation, 16 digital output, 24V DC, 0.5A, 1x 20 poles, Total current 4A/ group (8A/ module)
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 20.4V
● Allowable range, upper limit (DC) 28.8V
Input current
Voltage from load L+ (no load), maximum 80 mA
From the backplane bus DC 5 V, Max 80 mA
Power loss
Power loss, typical value 4.9W
Digital output
Number of output terminals 16
Short circuit protection is; electron
● Response threshold, typical value 1 A
Limit of induction shut-off voltage L+ (-53 V)
Control digit input is
Output on-off capability
● The maximum value of lighting load is 5 W
Load resistance range
● Lower limit 48 Ω
● Maximum 4 kΩ
Output voltage
● For signal "1", minimum L+ (-0.8V)
Output current
● 0.5 A rating for signal "1"
● For signal "1" allowable range 0 to 40 ℃, minimum value 5 mA
● For signal "1" allowable range 0 to 40 ℃, maximum 0.6A
● For signal "1" allowable range of 40 to 60 ℃, minimum value 5 mA
● For signal "1" allowable range of 40 to 60 ℃, maximum 0.6A
● Minimum load current 5 mA for signal "1"
● For the residual current of signal "0", the maximum is 0.5mA
The output delay when the resistance is loaded
● From "0" to "1", up to 100 µs
● From "1" to "0", up to 500 µs
The two outputs are in parallel
● Used to increase power No
● For redundancy control load is
Switching frequency
● The maximum value of resistance under load is 100 Hz
● The maximum value of inductive load is 0.5Hz
● For inductive load (in accordance with IEC 60947-5-1, DC13), the maximum is 0.5Hz
● The maximum value of lighting load is 10 Hz
Total current at output (per group)
Horizontal mounting position
- The maximum temperature is 40 ℃, and the maximum value is 4 A
- The maximum is 60 ℃ and the maximum is 3 A
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 2 A
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
diagnosis
● Disconnect No
● Short circuit No
● The fuse is blown
● Load voltage missing No
Diagnostic display LED
● Rated load voltage PWR (Green) No
● Insurance OK FSG (green) No
● Digital output status display (green) Yes
Potential isolation
Digital output potential isolation
● Between the channels yes
● Between channels, group the number of points 8
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 190 g
