Technical data

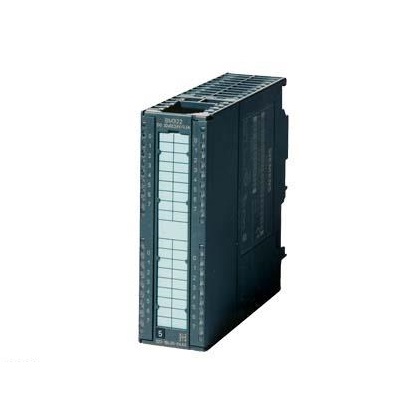

SIMATIC S7-300, Digital Output SM 322, potential isolation, 8 digital outputs (relays), 1 40 pin, 24V DC, 5A or 230V AC, 5A, connector with cage card type terminals available from 6ES7392-1BM01-0AA0
Supply voltage
Load voltage L+
● Rating (DC) 120 V
Load voltage L1
● Rating (AC) 230V
Input current
Voltage L+ from the supply, maximum 125 mA
From the backplane bus DC 5 V, Max 40 mA
Power loss
Power loss, typical value 3.2 W
Digital output
Number of digital output terminal 8; relay
Short circuit protection No; External presets
Control digit input is
Output on-off capability
● The maximum value of lighting load is 1 500 W; AC 230 V
● CFLS and fluorescent lamps with electronic exciter 10x 58W
● Traditional compensating fluorescent lamp 1x 58W
● Uncompensated Fluorescent Lamp 10x 58W
Output current
● For signal "1" rating 5 A
● Minimum load current 5 mA for signal "1"
The two outputs are in parallel
● Used to increase power No
● For redundancy control load is
Switching frequency
● The maximum value of resistance under load is 2 Hz
● The maximum value of inductive load is 0.5Hz
● Inductive load (in accordance with IEC 60947-5-1, DC13/AC15) maximum 0.5 Hz
● The maximum value under lighting load is 2 Hz
● Mechanical, maximum 10 Hz
Total current at output (per group)
Horizontal mounting position
- The maximum value is 60 ℃ and the maximum value is 5 A
Vertical mounting position
- The maximum temperature is 40 ℃ and the maximum value is 5 A
Relay output terminal
● Relay coil L+ (DC) power supply voltage 24 V
● Contact circuit (internal) No
● The maximum number of operating cycles is 300000; 300000 (24V DC at 2 A); 200000 (120 V AC at 3 A); 100000 (230 V AC at 3 A)
The on-off capacity of the contact
-- the maximum value of inductive load is 3 A; 3 A (230 V AC), 2 A (24 V DC)
-- Maximum resistance load 8 A; 8 A (230 V AC), 5 A (24 V DC)
- Continuous thermal current, maximum value: 8 A
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
diagnosis
● Disconnect No
● Short circuit No
● The fuse is blown
● Load voltage missing No
Diagnostic display LED
● Rated load voltage PWR (Green) No
● Insurance OK FSG (green) No
● Digital output status display (green) Yes
Potential isolation
Digital output potential isolation
● Between the channels yes
● Between channels, group the number of points 1
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using AC 2000 V
Connect technology/title
Required front plug 40 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 320 g
