Technical data

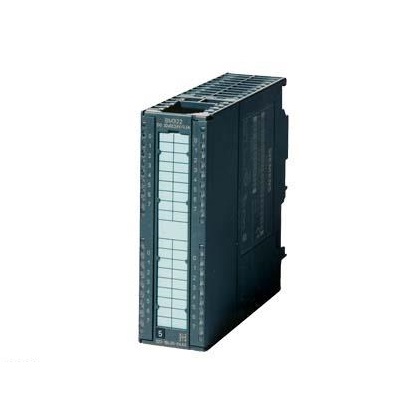

SIMATIC S7-300, Digital Output SM 322, Potential Isolation 16 digital output, Relay contacts, 1 count 20 pins
Supply voltage
Load voltage L+
● Rating (DC) 120 V
Load voltage L1
● Rating (AC) 230V
Input current
Voltage L+ from the supply, maximum 250 mA
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 4.5 W
Digital output
The number of digital output terminals is 16; relay
Short circuit protection No
Control digit input is
Maximum specification size of motor starter conforming to NEMA protection Class 5 Conforming to NEMA
Output on-off capability
● The maximum value of lighting load is 50 W; AC 230 V
Output current
● For signal "1" rating 2 A
● Minimum load current 10 mA for signal "1"
The two outputs are in parallel
● Used to increase power No
● For redundancy control load is
Switching frequency
● The maximum value of resistance under load is 1 Hz
● The maximum value of inductive load is 0.5Hz
● Inductive load (in accordance with IEC 60947-5-1, DC13/AC15) maximum 0.5 Hz
● The maximum value under lighting load is 1 Hz
● Mechanical, maximum 10 Hz
Total current at output (per group)
Horizontal mounting position
- The maximum is 60 ℃ and the maximum is 8 A
Vertical mounting position
- The maximum temperature is 40 ℃ and the maximum value is 8 A
Relay output terminal
● Relay coil L+ (DC) power supply voltage 24 V
● Contact circuit (internal) No
● The maximum number of operating cycles is 100 000; 50000 (24V DC at 2 A); 700000 (120 V DC at 2 A); 100000 (230 V AC at 2 A)
The on-off capacity of the contact
-- the maximum value of inductive load 2 A; 2 A (230 V AC), 2 A (24 V DC)
-- The maximum value of resistance under load is 2 A; 2 A (230 V AC), 2 A (24 V DC)
- Continuous thermal current, maximum value 2 A
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
diagnosis
● Disconnect No
● Short circuit No
● The fuse is blown
● Load voltage missing No
Diagnostic display LED
● Rated load voltage PWR (Green) No
● Insurance OK FSG (green) No
● Digital output status display (green) Yes
Potential isolation
Digital output potential isolation
● Between the channels yes
● Between channels, group the number of points 8
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using AC 1500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 250 g
