Technical data

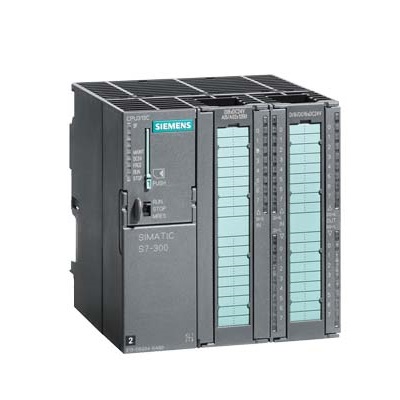

SIMATIC S7-300, CPU 314C-2PN/DP Compact CPU with 192 KB working memory, 24 DE/16 DA, 4AE, 2AA, 1 Pt100, 4 fast counters (60 kHz), 1 MPI/DP 12 Mbit /s port, 2 Ethernet PROFINET ports, with dual port switch, integrated power 24V DC, front connector (2x 40 poles) and requires micro memory card
General information
Hardware function status 01
Firmware version V3.3
Product function
● Clock synchronization mode is; For PROFINET only
packaged
● Engineering systems start from STEP 7 V5.5 with HSP 191
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
External safety device for power conductor (recommended) LS switch, type C, minimum 2 A; LS switch, type B, minimum value 4 A
The power supply and voltage break are bonded
● Blackout/blackout crossover time 5 ms
● Repetition rate, minimum value 1 s
Load voltage L+
Digital input terminal
- Rating (DC) 24 V
- Reverse polarity protection Yes
Digital output terminal
- Rating (DC) 24 V
- Reverse polarity protection No
Input current
Consumption current (rated) 850 mA
Consumption current (no load), typical value 190 mA
On current, typical value 5 A
I squared t 0.7A squared times s
Digital input terminal
● From the load voltage L+ (no load), maximum 80 mA
Digital output terminal
● From the load voltage L+, maximum 50 mA
Power loss
Power loss, typical value 14 W
memory
Working memory
● Integrated 192 kbyte
● Expandable No
Loading storage
● Plug-in type (MMC) Yes
● Pluggable (MMC), Max. 8 Mbyte
● Data management on MMC (after last programming), minimum 10 a
buffering
Dimensions
Width 120 mm
Height 125 mm
Depth 130 mm
Weights
Weight, approx. 730 g
